4.6.1 Environment settings for the Web Console server

This subsection explains Web Console server environment settings that need to be considered in advance.

Organization of this subsection

(1) Log sizes and the number of log files output by the Web Console server
(2) Time zone of the Web Console server
(3) Changing display colors for the Web GUI

(1) Log sizes and the number of log files output by the Web Console server

The Web Console server outputs the following three types of log data:

Command log

Outputs log data about command operations.
Application server log

Outputs log data about Web GUI operations or API calls from user applications.
Application server common log

Outputs log data about the starting and stopping of the web application server.

The following table lists the default sizes and the number of files for each type of log.

Table 4‒14: Default sizes and the number of files of the log data output by the Web Console server
No.	Log type	Default size	Default number of files
1	Command log	128 kilobytes	2
2	Application server log	8,192 kilobytes	2
3	Application server common log	8,192 kilobytes	2

For the command log and application server log, you can change the size and the number of files of the log data. The size and the number of files for the application server common log cannot be changed.

The log size and the number of files for the command log and application server log are specified in the environment-settings file (ajs3web.conf). For details about the environment-settings file (ajs3web.conf), see the section corresponding to the OS. For Windows, see 3.4.3 Details on the settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide. For UNIX, see 13.3.3 Details on settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide.

To Page Top

(2) Time zone of the Web Console server

The date and time information on the Web GUI or a user application is displayed according to the manager host time zone regardless of the client host time zone. Therefore, if the Web Console server and the manager host have different time zones, you need to specify the manager host time zone in the environment-settings file (ajs3web.conf) on the Web Console server.

The following figure shows example time zones of the Web Console server and manager hosts.

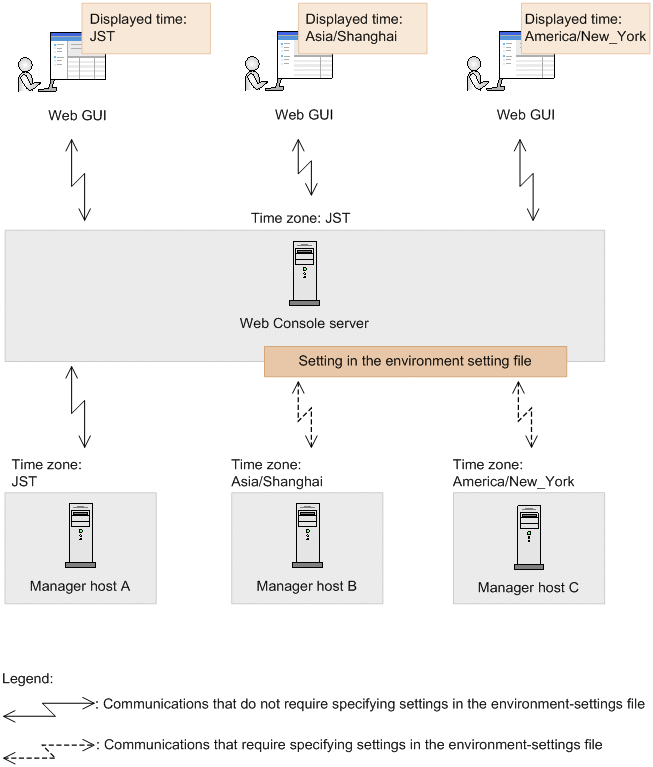

Figure 4‒11: Example time zones of the Web Console server and manager hosts

In this example, the time zone of the Web Console server is JST, time zones of the manager hosts from A to C are JST, Asia/Shanghai, America/New_York, respectively. The time displayed on the Web GUI is the time zone of the corresponding destination manager host.

If you connect to the manager host A, setting the environment-settings file (ajs3web.conf) is not required. If you connect to the manager host B or manager host C, you need to set the time zone in the environment-settings file (ajs3web.conf). This is because the time zone of the manager host and that of the Web Console server do not match.

By using the ajswebtz.bat command (in Windows) or the ajswebtz command (in Linux), you can obtain a list of time zones that can be specified in the environment-settings file (ajs3web.conf). For details, see ajswebtz.bat (Windows only) in 3. Commands Used for Normal Operations in the manual JP1/Automatic Job Management System 3 Command Reference or ajswebtz (Linux only) in 3. Commands Used for Normal Operations in the manual JP1/Automatic Job Management System 3 Command Reference.

For details about the environment-settings file (ajs3web.conf), see the section corresponding to the OS. For Windows, see 3.4.3 Details on the settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide. For UNIX, see 13.3.3 Details on settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide.

To Page Top

(3) Changing display colors for the Web GUI

The following discusses the colors that indicate the statuses of units displayed in the windows and dialog boxes of the Web GUI. You can change the display colors by changing settings in the display color settings file (ajs3web_color.conf) on the Web Console server.

For details about the display color settings file (ajs3web_color.conf), see the section corresponding to the OS. For Windows, see 3.4.8 Details on the settings in the display color settings file (ajs3web_color.conf) in the JP1/Automatic Job Management System 3 Configuration Guide. For Linux, see 13.3.8 Details on the settings in the display color settings file (ajs3web_color.conf) in the JP1/Automatic Job Management System 3 Configuration Guide.

Changing the display colors that indicate unit statuses

You can change the colors that indicate the statuses of units displayed in the windows and dialog boxes of the Web GUI. The following table lists the windows and dialog boxes in which display colors can be changed, and the items whose display colors can be changed. Note that, for icons, you can change the background color only.

Table 4‒15: Items whose display colors can be changed by editing the display color settings file (`ajs3web_color.conf`)
No.	Screen and Dialog box			Items whose display colors can be changed
1	Dashboard screen	Status of Root Jobnet area		Execution progress (for individual root jobnets)
2				Root jobnet status icons
3				Execution progress (for the whole units)
4				Unit status icons
5		Detail Information area	List tab	Icons in the Status column
6				Icon for the Hold-On button
7				Icon for the Hold-Off button
8			Chart tab	Execution schedule
9	List screen	List area		Icons in the Status column
10	List screen	List area		Icons in the Result column
11	Monitor dialog box, Monitor screen	Map area		Icons for the Unit
12		Top of the screen and dialog box		Icon for the Hold-On button
13				Icon for the Hold-Off button
14				Icon for the Interrupt button
15				Icon for the Kill button
16				Icon for the Rerun button
17	Generation Selection dialog box			Icons in the Status column
18	Monthly Schedule screen	Schedule area		Execution schedule
19		List area		Icons in the Status column
20		Top of the screen		Icon for the Hold-On button
21		Top of the screen		Icon for the Hold-Off button

Setting to use the same display colors for the Web GUI and JP1/AJS3 - View

By using the model file ajs3web_color_view.conf.model, you can set the display colors for the Web GUI to the default display colors for JP1/AJS3 - View. If display colors for JP1/AJS3 - View were changed from the defaults, those colors can be also set for the Web GUI. To do this, change definitions in the display color settings file (ajs3web_color.conf).

Display color for the delay

For units in the Delay status, you can specify whether to have the status displayed as the color for its icon, status, or result.

You can also use the DELAY_COLOR_PRIORITY parameter in the display color settings file (ajs3web_color.conf) to specify which status color to display for a unit if the status of the unit is simultaneously Abend, Warning, or Delay. You can specify the following values:

A-W-D

The priority for the displayed color is Abend > Warning > Delay.
A-D-W

The priority for the displayed color is Abend > Delay > Warning.
D-A-W

The priority for the displayed color is Delay > Abend > Warning.

For example, if you specify A-W-D and a jobnet ends abnormally due to a delay, the color for abnormal ends (light red) is displayed. If you specified D-A-W, the color for delayed ends (cherry blossom color) is displayed.

Select a priority according to the importance placed on delays when monitoring the system. The default is A-W-D. To prioritize the monitoring of delays in units whose execution impacts the business as a whole, specify D-A-W.

Hold plan

You can specify whether to use the color for Hold plan for unit icons and color images in the Status and Result columns if a unit is in a wait status and its hold attribute has been set. The wait status is Wait for start time, Wait for prev. to end, Waiting to execute, or Wait for start cond.
