2.2.5 Examples of system configurations that include a Web Console server
A Web Console server must be installed if you want to monitor units using the Web GUI or a user application. The following sections describe examples of system configurations with a Web Console server.
- Organization of this subsection

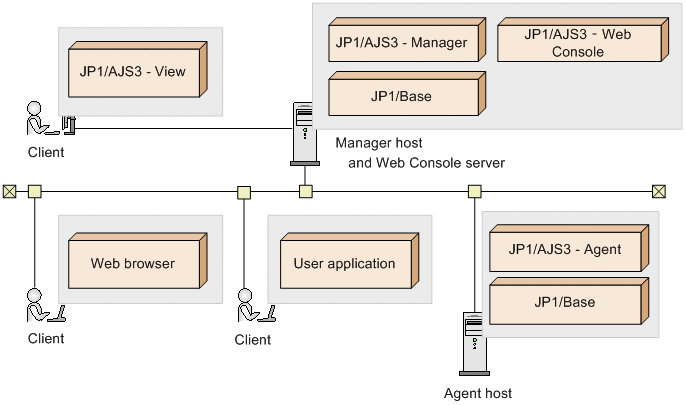

(1) The Web Console server and the manager host run on the same host
In this configuration, JP1/AJS3 - Manager and JP1/AJS3 - Web Console are installed on a single host.
The Web GUI or a user application can be used as a client along with JP1/AJS3 - View.
Note that this configuration can only be made when the host OS is Windows or Linux.
|

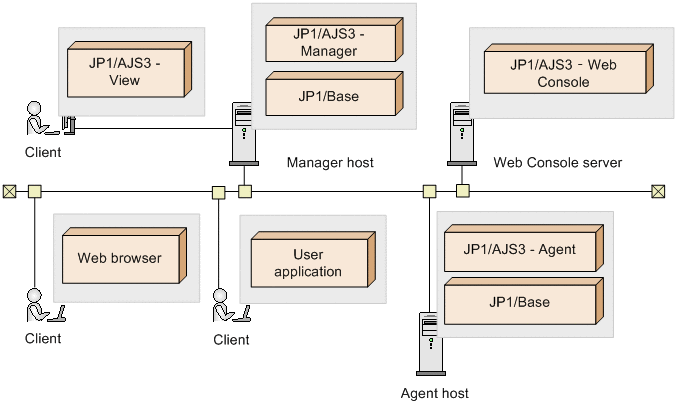

(2) The Web Console server and the manager host run on different hosts
In this configuration, JP1/AJS3 - Manager and JP1/AJS3 - Web Console are installed on separate hosts.
The Web GUI or a user application can be used as a client along with JP1/AJS3 - View.
|

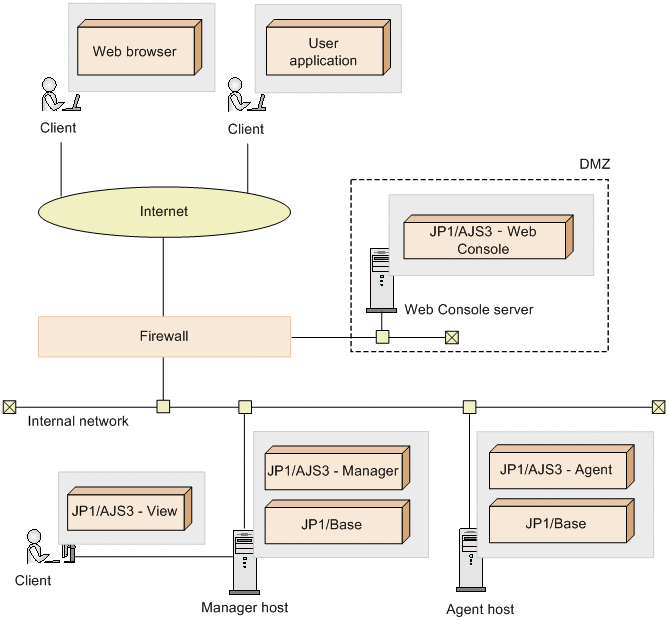

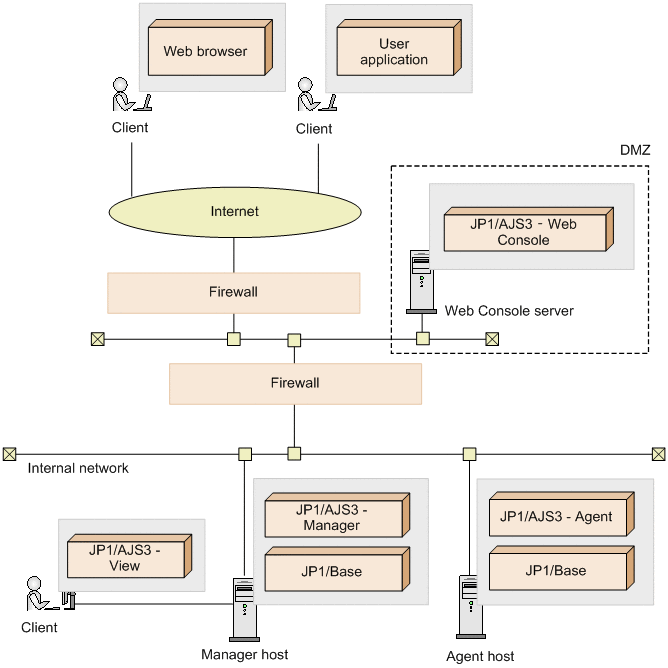

(3) The Web Console server is placed in the DMZ
Consider placing the Web Console server in the DMZ when the Web GUI or a user application is connected via the Internet using HTTP. This enables a more secure system configuration.
|
|
