3.1.2 Building a jobnet
The jobnet definition flow for automating applications in JP1/AJS3 is as follows:
-
Create a job group as required.
-
Create a jobnet.
-
Create the jobs.
-
Sequence the created jobs as required.
-
Set a start condition for the jobnet as required.
For details on setting a start condition, see 3.4 Defining a start condition.
In JP1/AJS3, operations such as scheduling, execution, and management are performed in application units, that is, by root jobnet. For this reason, the jobnets will be easier to manage as a whole if you have some criteria in mind when grouping processes into jobnets.
Below, we provide some examples of jobnet creation to illustrate how to group processes into a jobnet.
-
Example of management by application category
This example builds a jobnet of related applications. An application-based jobnet allows jobs to be easily added, changed, or deleted whenever required.
The following figure shows an example of management by application category.
Figure 3‒14: Example of management by application category -
Example of management by department
This example builds a jobnet categorized by department. A departmental jobnet facilitates overall jobnet management and prevents operators in other departments from accessing the wrong applications.
The following figure shows an example of management by department.
Figure 3‒15: Example of management by department -
Example of management by processing category
This example builds a jobnet by processing unit. With a processing-based jobnet, there is no need for complex scheduling or structuring into hierarchical levels.
The following figure shows an example of management by processing category.

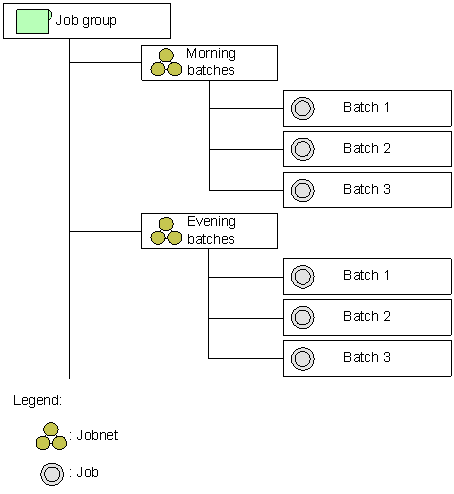

Figure 3‒16: Example of management by processing category
If you are using commands to operate on jobnets, it would be best to use lower-case alphanumeric characters when setting names to allow for the use of regular expressions.
