2.1.2 Procedures for deploying JP1/AJS3

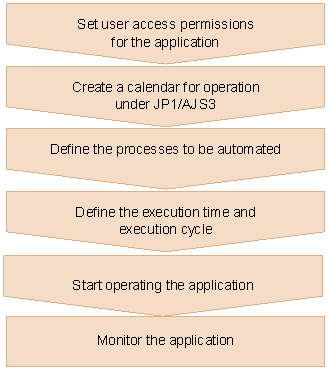

Having considered what processes to automate in an application, complete the job definitions and settings. You can then start using JP1/AJS3. The following figure shows the procedures for automating applications using JP1/AJS3.
|
- Organization of this subsection
(1) Set user access permissions for the application
On the authentication server (JP1/Base), register the users who will use JP1/AJS3. For each user, define his or her access permissions to the application.
(2) Create a calendar for operation under JP1/AJS3
Create a JP1/AJS3 calendar (open days and closed days). Complete other settings, including the monthly start date (base day) and the daily start time (base time).
(3) Define the processes to be automated
Define each process in the automated application as a separate job. Set their order of execution, and build the processes into a jobnet.
(4) Define the execution time and execution cycle
Define the schedule rules for the jobnet, including the execution start time and execution cycle, according to the application schedule. If the application has no predetermined start time, define a start condition.
(5) Start operating the application
Register the created jobnet for execution and start operation. Once the jobnet has been registered, it is scheduled according to the settings and runs automatically.
(6) Monitor the application
Monitor the execution status of the registered jobnet and check the execution result and execution schedule.
