1.4 JP1/AJS3 database configurations

JP1/AJS3 - Manager uses an embedded database as standard for managing information about jobs and jobnets. However, an ISAM database can be used for reasons of compatibility with a previous version or if required by the operating environment.

JP1/AJS3 - Manager supports two types of database configurations:

• Standard configuration

• Standard configuration without ISAM

The following figure shows the database configurations supported by JP1/AJS3 - Manager.

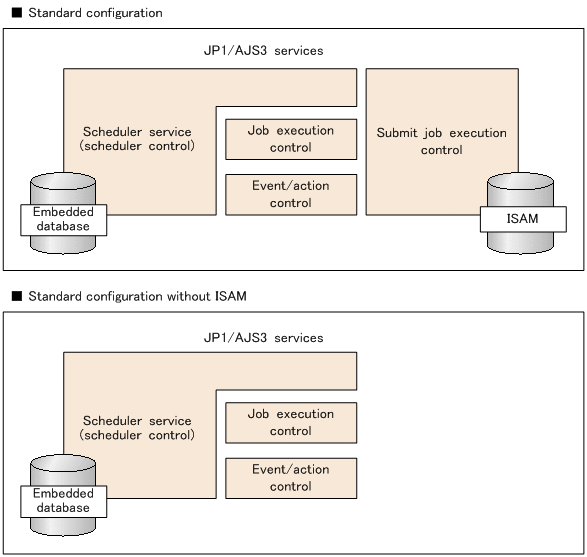

Figure 1‒9: JP1/AJS3 - Manager database configurations

Supplementary note

In version 11-00 or earlier, a configuration that uses only an ISAM database (compatible ISAM configuration) can be used to maintain compatibility with JP1/AJS2 version 8 or earlier.

In version 11-10 or later, however, the compatible ISAM configuration is not supported.

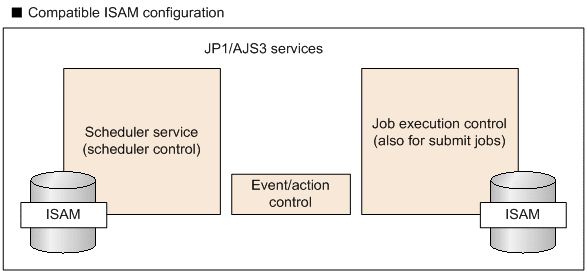

Figure 1‒10: Compatible ISAM configuration

Each database configuration is described next.

Organization of this section

• 1.4.1 Standard configuration

• 1.4.2 Standard configuration without ISAM

• 1.4.3 Compatible ISAM configuration
