7.4.1 Acquiring a master agent send/receive packet dump
A master agent send/receive packet dump is used to investigate what kinds of SNMP messages were sent and received when there is no response to an SNMP request from the manager, or when you suspect that a response is to an invalid SNMP message.

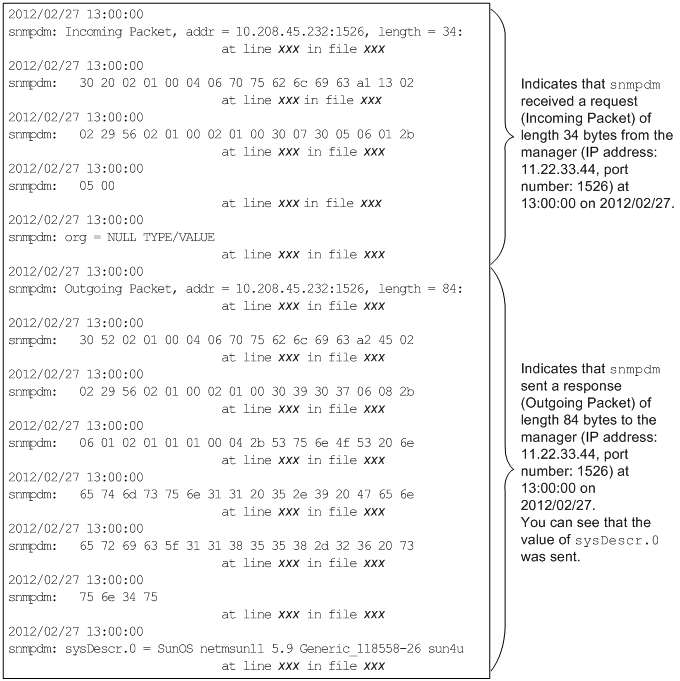

The following figure shows an example of a master agent send/receive packet dump.
|
