4.2.1 Organization of Hewlett-Packard enterprise-specific MIB objects

The following figure shows the organization of the Hewlett-Packard enterprise-specific MIB objects.

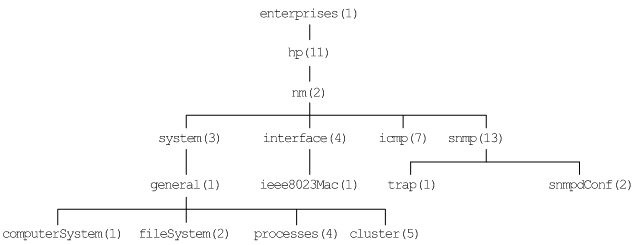

Figure 4‒2: Organization of Hewlett-Packard enterprise-specific MIB objects

The following table indicates, for each group, the tables that describe the Hewlett-Packard enterprise-specific MIB objects and their implementation statuses.

Table 4‒11: Referenced locations for Hewlett-Packard enterprise-specific MIB objects

Hewlett-Packard enterprise-specific MIB object group				Referencing destination
				MIB object description	MIB object implementation status
enterprises.hp.nm	system	general	computerSystem	Table 4-12	Table 4-20
			fileSystem	Table 4-13	Table 4-21
			processes	Table 4-14	Table 4-22
			cluster	Table 4-15	Table 4-23
	interface	ieee8023Mac		Table 4-16	Table 4-24
	icmp			Table 4-17	Table 4-25
	snmp	trap		Table 4-18	Table 4-26
		snmpdConf		Table 4-19	Table 4-27
