4.1.1 Organization of standard MIB objects

The next figure indicates the organization of standard MIB objects.

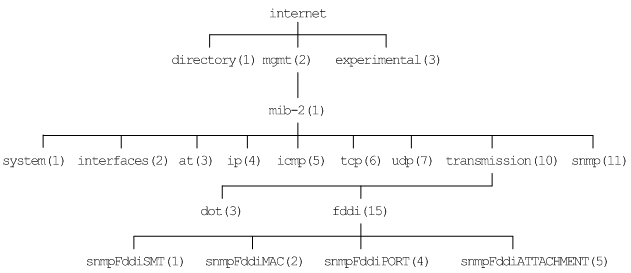

Figure 4‒1: Organization of standard MIB objects

The following table indicates, for each group, the tables that describe the standard MIB objects and their implementation statuses.

Table 4‒1: Referenced locations for the standard MIB objects
Standard MIB object group		Referencing destination
Standard MIB object group		MIB object description	MIB object implementation status
`internet.mgmt.mib-2`	`system`	Table 4-2	Table 4-10
	`interfaces`	Table 4-3	--
	`at`	Table 4-4	--
	`ip`	Table 4-5	--
	`icmp`	Table 4-6	--
	`tcp`	Table 4-7	--
	`udp`	Table 4-8	--
	`snmp`	Table 4-9	--
