2.4.9 Report files in table format
The report section of a report in table format displays the report details and the table.
- Organization of this subsection
(1) Subresource columns - Instance Rows

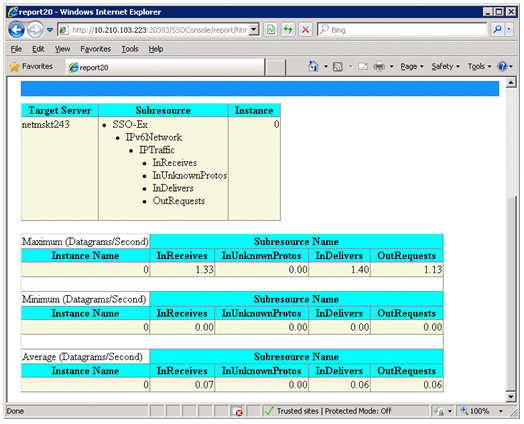

The following subsections describe the displayed contents. Figure 2-47 shows the display format.
(a) Report details
The collection target server name, unit, subresource names, and instance names are displayed as report details.
(b) Table
A row is created for each instance name and a column is created for each subresource name. The minimum value, maximum value, and average for the report term are displayed as the report result.
|
(2) Instance columns - Subresource rows

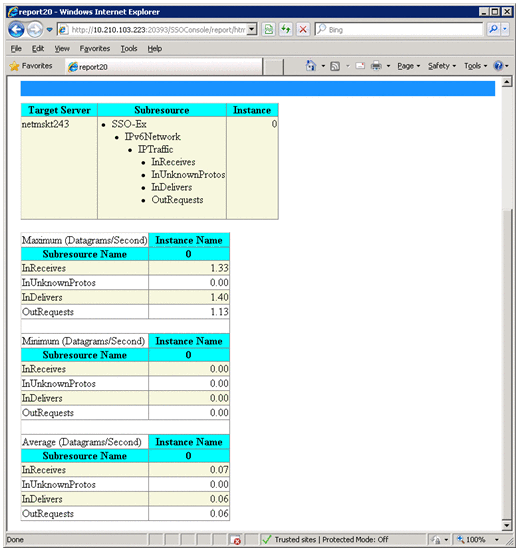

The following subsections describe the displayed contents. Figure 2-48 shows the display format.
(a) Report details
The collection target server name, unit, subresource names, and instance names are displayed as report details.
(b) Table
A row is created for each subresource name and a column is created for each instance name. The minimum value, maximum value, and average for the report term are displayed as the report result.
|
(3) According to instance

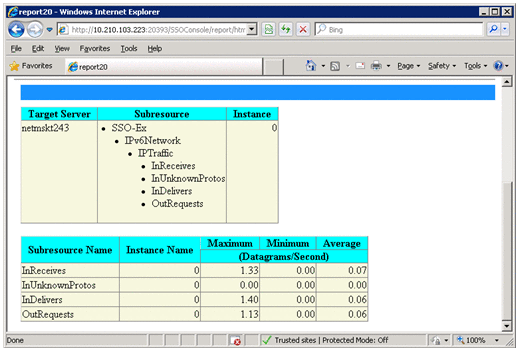

The following subsections describe the displayed contents. Figure 2-49 shows the display format.
(a) Report details
The collection target server name, unit, subresource names, and instance names are displayed as report details.
(b) Table
A subresource name is displayed as the parent category of a row, and instance names are displayed as child categories of that row. The minimum value, maximum value, and average for the report term are displayed as the report result.
|
(4) According to subresource

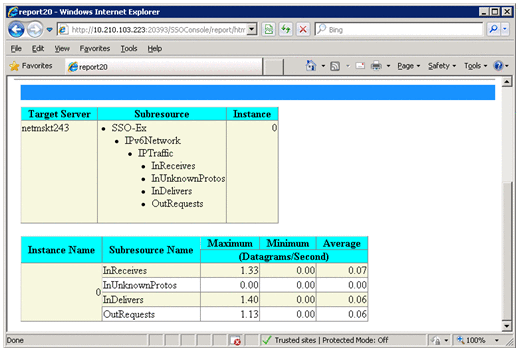

The following subsections describe the displayed contents. Figure 2-50 shows the display format.
(a) Report details
The collection target server name, unit, subresource names, and instance names are displayed as report details.
(b) Table
An instance name is displayed as the parent category of a row, and the subresource name is displayed as the child category of that row. The minimum value, maximum value, and average for the report term are displayed as the report result.
|
