VM Virtual Disk Status (PI_VVDI)
- Organization of this page
Function
This record stores performance data on a virtual disk being used by a virtual machine over a unit of time. This record is a multi-instance record.

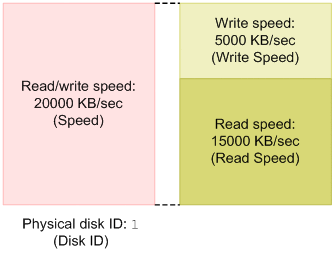

In this record, you can collect performance data such as the data read/write speed of the virtual disk being used by the virtual machine. For the data read/write speed, you can collect further details, that is, data write speed and data read speed. The figure below shows an example of data that can be collected in this record.
- Note:
-
Information cannot be collected if an attempt to connect to the monitored physical server fails.
Default values and values that can be changed
Item |
Default value |
Can it be changed? |
---|---|---|
Collection Interval |
300 |
Yes |
Collection Offset |
0 |
Yes |
Log |
No |
Yes |
LOGIF |
Blank |
Yes |
Over 10 Sec Collection Time |
No |
No |
ODBC key field
PI_VVDI_VM_ID
PI_VVDI_DISK_ID
Lifetime
None
Record size
-
Fixed portion: 937 bytes
-
Variable portion: 1,300 bytes
Fields
PFM - View name (PFM - Manager name) |
Explanation |
Summary |
Grouping |
Format |
Delta |
When not collected |
Unsup-ported |
---|---|---|---|---|---|---|---|
Record Type (INPUT_RECORD_TYPE) |
The record name. This is always VVDI. |
COPY |
COPY |
char(8) |
No |
-- |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Record Time (RECORD_TIME) |
The time when the record was created. |
COPY |
COPY |
time_t |
No |
-- |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Interval (INTERVAL) |
Interval during which the information is collected. [Units: seconds] |
COPY |
FIXED |
ulong |
No |
-- |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
VA DeviceID (VADEVICEID) |
Device ID of a monitored host. |
COPY |
COPY |
string(256) |
No |
-- |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
VM ID (VM_ID) |
ID of the virtual machine. |
COPY |
FIXED |
string(65) |
No |
No |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Disk ID (DISK_ID) |
Disk ID. ID of the virtual disk connected to the virtual machine. |
COPY |
FIXED |
string(257) |
No |
No |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
VM Host Name (VM_HOST_NAME) |
Host name of the virtual machine. |
COPY |
FIXED |
string(257) |
No |
Blank |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
VM Name (VM_NAME) |
Name of the virtual machine. |
COPY |
FIXED |
string(257) |
No |
Blank |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Sampling Time (SAMPLING_TIME) |
Sampling time. The time when the performance information is collected on the host machine. Displayed in the following format: yyyy-mm-ddThh:mm[±hh:mm]# |
COPY |
FIXED |
string(32) |
No |
Blank |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Speed (SPEED) |
Data transfer speed. Speed of reads from or writes to the virtual disk, made by the virtual machine. [Units: KBps] |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Read Speed (READ_SPEED) |
Reading data transfer speed. Speed of reads from the virtual disk, made by the virtual machine. [Units: KBps] |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Write Speed (WRITE_SPEED) |
Writing data transfer speed. Speed of writes to the virtual disk, made by the virtual machine. [Units: KBps] |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Requests Per Sec (REQUESTS_PER_SEC) |
Number of requests per second. Number of times that read/write requests, made by the virtual machine to the virtual disk, are processed. |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Read Requests Per Sec (READ_REQUESTS_PER_SEC) |
Number of read requests per second. Number of times that read requests, made by the virtual machine to the virtual disk, are processed. Read request count. |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Write Requests Per Sec (WRITE_REQUESTS_PER_SEC) |
Number of write requests per second. Number of times that write requests, made by the virtual machine to the virtual disk, are processed. |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Total Latency (TOTAL_LATENCY) |
Average amount of total latency. Average amount of time for a read/write operation from the virtual disk. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Total Read Latency (TOTAL_READ_LATENCY) |
Average amount of total read latency. Average amount of time for a read operation from the virtual disk. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Total Write Latency (TOTAL_WRITE_LATENCY) |
Average amount of total write latency. Average amount of time for a write operation from the virtual disk. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 Hyper-V KVM logical partitioning feature Docker environment |
Outstanding Requests (OUTSTANDING_REQUESTS) |
Average amount of outstanding requests. Average number of outstanding read/write requests to the virtual disk. |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 VMware 4.1 Hyper-V KVM logical partitioning feature Docker environment |
Outstanding Read Requests (OUTSTANDING_READ_REQUESTS) |
Average amount of outstanding read requests. Average number of outstanding read requests to the virtual disk. |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 VMware 4.1 Hyper-V KVM logical partitioning feature Docker environment |
Outstanding Write Requests (OUTSTANDING_WRITE_REQUESTS) |
Average amount of outstanding write requests. Average number of outstanding write requests to the virtual disk. |
HILO |
AVG |
double |
No |
0 |
VMware 3.x VMware 4.0 VMware 4.1 Hyper-V KVM logical partitioning feature Docker environment |
