jpcnodecount

Format

jpcnodecount    [-h logical-host-name][-i instance-name] | [-m]
                -p service-key

To Page Top

Function

The jpcnodecount command counts the number of nodes managed by PFM - Manager or PFM - RM, and then outputs the number of nodes to the standard output.

To Page Top

Hosts that can execute the command

• PFM - Manager

• PFM - RM

To Page Top

Execution permission

In Windows:

User with Administrators permissions (executed from the administrator console when Windows UAC functionality is enabled)

In UNIX:

User with root user permissions (user with uid = 0)

To Page Top

Installation directory

In Windows:

installation-folder\tools\

In UNIX:

/opt/jp1pc/tools/

To Page Top

Arguments

To Page Top

Notes

Note the following when specifying PFM - Manager services in the -p option:

• The command does not count the number of nodes managed by PFM - Agent or PFM - RM instances or targets that have yet to be started or have not been connected to PFM - Manager successfully.

• After you perform uninstallation or unsetup of monitoring targets connected with PFM - Manager, execute the jpctool service delete and jpctool service sync commands to delete service information. The monitoring targets will be counted until service information is deleted.

• If you specify the -p option in a multiple-monitoring environment, we recommend that you execute the command on the primary host. For details about the command for checking whether the machine is a primary or secondary host, see jpcconf mgrhost display.

To Page Top

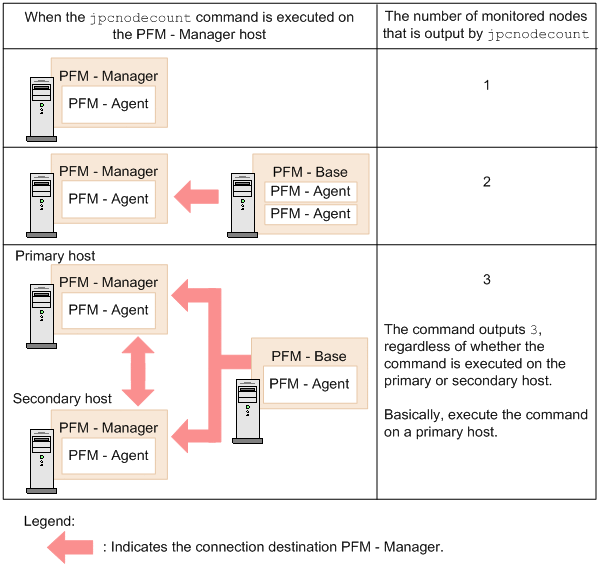

Target nodes that are counted

The nodes counted by the jpcnodecount command differ depending on the host on which the command is executed.

Nodes that are counted when the jpcnodecount command is executed in PFM - Manager:

• The jpcnodecount command counts the number of agents (on the host basis) where the PFM - Manager host on which the command is executed is specified as the connection destination PFM - Manager host.

  Even if multiple applicable agents are installed on a single host, the number of nodes is counted as one.

• If the local host is specified as the connection destination PFM - Manager host, the number of nodes is counted as one.

• If an agent is installed on a primary host and a secondary host in a multiple-monitoring environment, the local host is counted as one, and the primary or secondary host is counted as one.



Nodes that are counted when the jpcnodecount command is executed in PFM - RM:

If the jpcnodecount command is executed in PFM - RM, the monitoring targets specified in PFM - RM are counted. In this case, the monitoring targets refer to those specified in an instance of PFM - RM.

To Page Top

Return values

To Page Top

Usage example 1

This example counts the number of nodes managed by PFM - Manager.

> jpcnodecount -p mgr
10

To Page Top

Usage example 2

This example counts the number of nodes managed by PFM - RM for Platform.

> jpcnodecount -p agt7
250

To Page Top

Usage example 3

This example counts the number of nodes managed by PFM - RM for Platform (instance name: inst01).

> jpcnodecount -i inst01 -p agt7
50

To Page Top

Usage example 4

This example counts the number of nodes managed by PFM - RM for Platform (logical host name: lhost01).

> jpcnodecount -h lhost01 -p agt7
100

To Page Top

Usage example 5

This example counts the number of nodes managed by PFM - RM for Platform (on both physical and logical hosts).

> jpcnodecount -m -p agt7
500

To Page Top

Usage example 6

This example counts only the number of nodes managed by logical host instance linst01 in a PFM - RM for Platform environment (physical host instance: inst01, logical host: lhost01, logical host instance: linst01).

> jpcnodecount -h lhost01 -i linst01 -p agt7
500
