jpcconf port list
- Organization of this page
Format
jpcconf port list -key service-key [-lhost logical-host-name] [-inst instance-name]
Function
The jpcconf port list command displays the port numbers that are used with Performance Management.
The following information is displayed:
Item |
Description |
---|---|
Component |
Service name. The displayed names indicate the following:
|
ServiceID |
Service ID |
Services |
Name of the service that uses the port number. If this information is undefined, undef is displayed. |
Port |
Port number. If this information is undefined, undef is displayed. |
Host Name |
Host name |
Hosts that can execute the command
-
PFM - Manager
-
PFM - Agent
-
PFM - RM
Execution permission
- In Windows:
-
User with Administrators permissions (executed from the administrator console when Windows UAC functionality is enabled)
- In UNIX:
-
User with root user permissions
Installation directory
- In Windows:
-
installation-folder\tools\
- In UNIX:
-
/opt/jp1pc/tools/
Arguments
-key service-key
Specifies the service key of the service whose port numbers are to be the subject of this execution of the command. You can specify the following in service-key:
-
all: Specifies the port numbers of all programs of the Performance Management products.
-
Manager or mgr: Specifies the port numbers that are used with the PFM - Manager services (excluding the Status Server and Action Handler services), and between PFM - Web Console and the View Server service.
-
Product name or agtX: Specifies the port numbers that are used with the specified PFM - Agent or PFM - RM service, and the Name Server service.
-
AH or act: Specifies the port numbers that are used with the Action Handler service and the Name Server service.
-
View or view: Specifies the port numbers that are used between the PFM - Web Console and View Server services.
-
StatSvr or stat: Specifies the port numbers that are used with the Status Server service and the Name Server service.
Product name or agtX indicates the service key for the particular PFM - Agent or PFM - RM. For details about the service key of the PFM - Agent or PFM - RM service, see the naming rules described in the appendix of the JP1/Performance Management Planning and Configuration Guide.
-lhost logical-host-name
Specifies the host name of the logical host whose logical environment port numbers are to be displayed.
For logical-host-name, specify a string of 1 to 32 bytes, consisting of alphanumeric characters with no space characters and no periods (.).
For logical-host-name, you cannot specify localhost, an IP address, or a host name beginning with a hyphen (-).
-inst instance-name
Specifies the instance name of the instance whose port numbers are to be displayed. This option is applicable only to a PFM - Agent or PFM - RM that has an instance environment. For instance-name, specify a string of 1 to 32 bytes, consisting of alphanumeric characters.
You can use the jpcconf inst list command to check the instance names that can be specified.
Notes
-
Services do not need to be stopped when this command is executed.
-
To avoid confusion during operations, you should use consistent conventions for the correspondence between port numbers and service names over the entire Performance Management system.
-
If this command's execution is interrupted by pressing the Ctrl + C keys or by a signal, a predefined return value is not returned. Therefore, ignore the return value when the command was interrupted by the Ctrl + C keys or by a signal.
-
In an environment in which an overwrite installation from a version earlier than 11-00 was performed, the list of displayed port numbers includes the OpenView service (the service for NNM linkage).
To prevent the OpenView service line from being output to the definition file, see the description in the notes on migration (version 11-00 or later) in the appendix of the JP1/Performance Management Planning and Configuration Guide.
Return values
0 |
The command terminated normally. |
1 |
An argument specification is invalid. |
2 |
The user does not have execution permission for the command. |
5 |
The specified service key was not found. |
7 |
The specified service key was not found at the logical host. |
10 |
The command is being executed. |
100 |
The Performance Management environment is invalid. |
102 |
The specified instance was not found. |
106 |
Port number has not been registered in the services file. |
200 |
A memory shortage occurred. |
210 |
A disk space shortage occurred. |
211 |
File cannot be accessed. |
255 |
An unexpected error occurred. |
Usage example
This example displays the information about the port numbers for all services of Performance Management programs:
jpcconf port list -key all

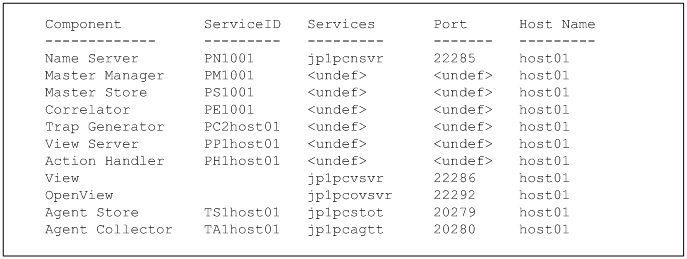

The following shows an example of the output:
