1.10.5 Change Monitoring Agent window
If a single report is associated with multiple monitoring agents, the Change Monitoring Agent window allows you to select and filter the monitoring agent to be displayed.
A single report is associated with multiple monitoring agents in the following situations.
Agent type |
Situation |
---|---|
PFM - Agent |
Multiple instances exist. For PFM - Agent for Service Response, the agent is set up on multiple hosts. |
PFM - RM |
The same host is being monitored. |

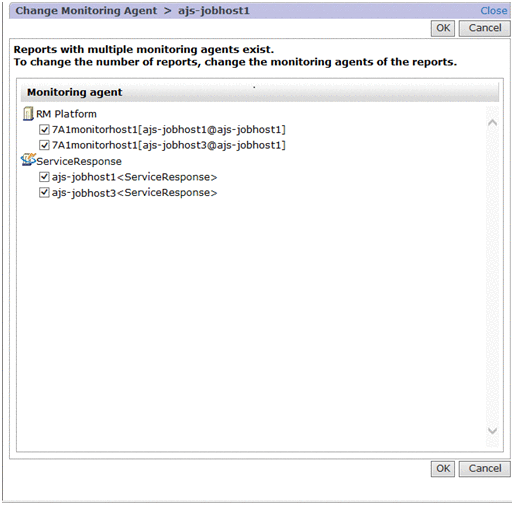

The following figure shows the Change Monitoring Agent window.
|
The following describes the displayed items:
- Close
-
Closes the Change Monitoring Agent window.
- OK button
-
Applies the settings and returns to the Select Report window.
- Cancel button
-
Discards the specified settings and returns to the Select Report window.
- Contents area
-
Displays the monitoring agents for which reports can be displayed. Select a check box to indicate a monitoring agent to be displayed.
