3.19 JP1/Service Support services

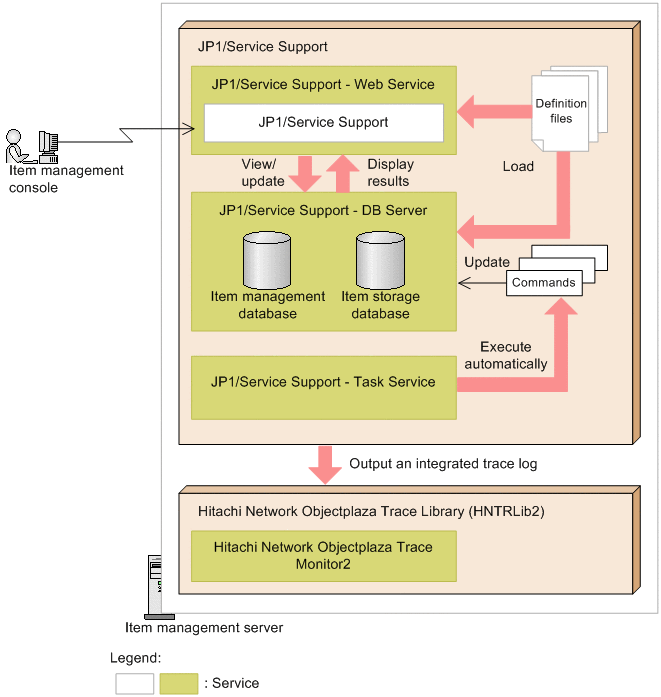

JP1/Service Support consists of four services. The following figure shows the relationship among these services.
|
When JP1/Service Support is installed, these services are registered in the Services dialog box of Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, or Windows Server 2008 R2. The following table lists and describes the services.
- #
-
The JP1/Service Support - Task Service is automatically registered when JP1/Service Support is installed. However, whether to execute the commands automatically must be set in the Definition file for the task practice service. For details about this file, see Definition file for the task practice service (jp1imss_service_setting.conf) in Chapter 13. Definition Files.
Note that to operate JP1/Service Support, you must activate the following service, which is a common service used by JP1 products:
-
Hitachi Network Objectplaza Trace Monitor 2
When JP1/Service Support is installed, Hitachi Network Objectplaza Trace Monitor 2 is also registered with the startup type of Automatic in the Services dialog box of Windows Server 2016, Windows Server 2012, Windows Server 2012 R2, or Windows Server 2008 R2.
- Important
-
In addition to the above services, the JP1/Service Support - DB Cluster Service is also registered in the Services dialog box of Windows Server 2016, Windows Server 2012, Windows Server 2012 R2, or Windows Server 2008 R2 when JP1/Service Support is installed. This service is used only when JP1/Service Support is used in a cluster system.
