8.2.2 Example 2 (non-cluster operation with command execution)

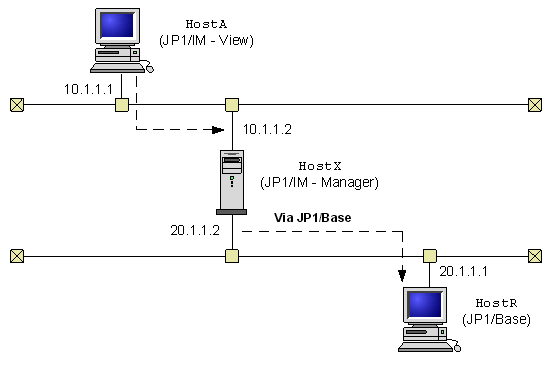

In this example, although cluster operation is not employed, the manager is connected to two LANs that cannot be mutually routed, one of the LANs is used to connect from JP1/IM - View to the manager, and the other LAN is used to execute commands at the other host.
|
The following tables show the settings for each host.
Host name |
Binding method# |
jp1host setting# |
---|---|---|
HostX |
send ANY, receive ANY |
-- |
send ANY, receive IP |
10.1.1.2, 20.1.1.2 |
- Legend:
-
--: Setting is not required
#: Can be connected with either settings.
You can achieve normal operation without having to change the JP1/Base communication settings (when cluster operation is not employed, the ANY binding methods can be used for both send and receive operations).
Host name |
Host to connect |
Other conditions |
---|---|---|
HostA |
HostX |
Conversion from host name HostX to 10.1.1.2 must be possible. |
