6.2 Environment setup procedure for cluster operation (for Windows)
This section describes the environment setup for JP1/IM - Manager that supports cluster operation.

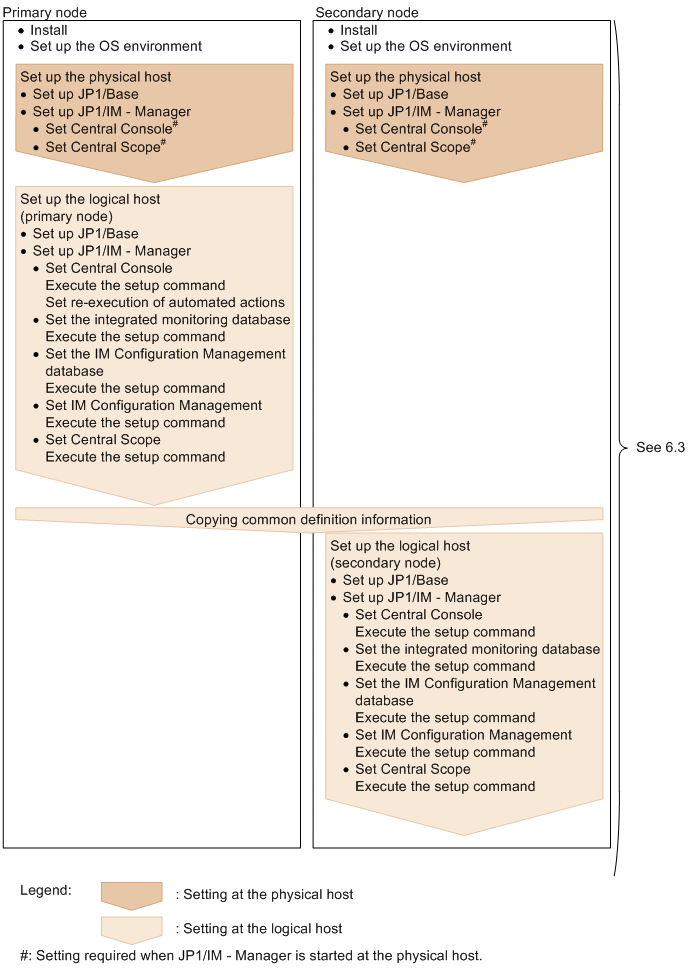

The following figure shows the setup procedure.
|
|
![[Figure]](GRAPHICS/CS130500.GIF)
|
|
JP1 Version 11 JP1/Integrated Management - Manager Configuration Guide
-
6. Operation and Environment Configuration in a Cluster System (for Windows)
-
6.2 Environment setup procedure for cluster operation (for Windows)
![[Figure]](GRAPHICS/CS130400.GIF)
