esppasswd {{-a | -c | -d }-s password-identification-name -o authentication-target -u user-name | -l [ -f file-name ]}

• Use this command for measuring Web transactions.
• This command adds, changes, and deletes passwords in the password file (i.e. the password utility).
• This command outputs a list of password keys (password identification name, authentication target, and user name) to the standard output or to a specified file.

Administrator permissions

installation-folder\agtv\probe\bin

-a

Specifies that a password is to be added.

-c

Specifies that a password is to be changed.

-d

Specifies that a password is to be deleted.

-s password-identification-name

Specifies the identification name of the processing that requires the password.

-o authentication-target

Specifies the target that requires authentication.

-u user-name

Specifies the user requiring a password.

-l

Specifies that a list of keys is to be output.

-f file-name

Specifies the file to which the list of keys is to be output. If the -l option is specified but this option is omitted, the list of keys is output to the standard output only.

The following table lists the values to be specified for the password identification name, authentication target, and user name.

Table 10-2 Value to be specified in the arguments

Service	Password identification name (value to be specified)	Authentication target	User name
HTTP(S) Web authentication	HTTP-W	URL	User name
HTTP(S) Proxy authentication	HTTP-P	Proxy server host name	User name
HTTPS client authentication	HTTPS-C	Client certificate file name#	A user name is not needed, and is ignored if specified.
SMTP, POP3	POP3	POP3 server host name	User name
IMAP4	IMAP4	IMAP4 server host name	User name
FTP	FTP	FTP server host name	User name

• If the specified key already exists, the password cannot be added.
• If the specified key does not exist, the password cannot be changed, added, or deleted.
• Of the names that can be specified as the authentication target, the following names are not case sensitive:

  • Host name (including a host name included in the URL)

0	Normal termination
1	The same key was found when a password was to be added.
2	The specified key was not found when a password was to be changed or deleted.
Other value	Abnormal termination

• Add a Web authentication password for the Web authentication user name hitachi with the URL www.hitachi.co.jp/index.html



  esppasswd -a -s HTTP-W -o www.hitachi.co.jp/index.html -u hitachi


• Change the POP3 password for the user name hitachi with the POP3 server name pop3.hitachi.co.jp



  esppasswd -c -s POP3 -o pop3.hitachi.co.jp -u hitachi

• Delete the POP3 password for the user name hitachi with the POP3 server name pop3.hitachi.co.jp



  esppasswd -d -s POP3 -o pop3.hitachi.co.jp -u hitachi

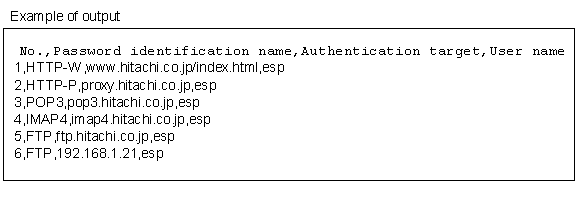

• Output a list of keys to the standard output



  esppasswd -l



• Output a list of keys to the file pwdkey



  esppasswd -l -f pwdkey
