The Replay Report window is used to show the replay report of the IE scenario by the Measurement Test. This window appears when the replaying IE scenario is completed.

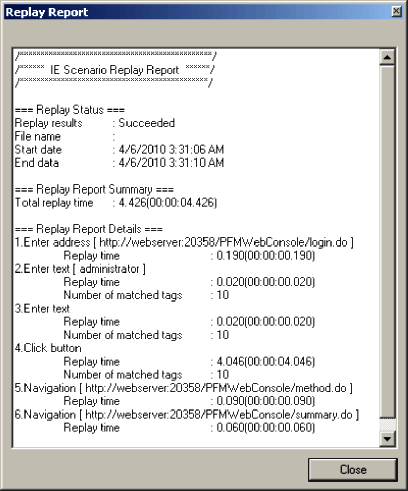

Figure 6-17 Replay Report window

The following describes the displayed items.

Replay results of operations

The following shows the information about the result of the replaying an IE scenario.

• Replay Status
  Displays the Replay Status (Succeeded or Failed), File name, Start date, and End data.

• Replay Report Summary
  Displays the Total replay time. The Total replay time is displayed to three places of decimals.

• Scope Summary
  Displays the replayed scopes (scope IDs and scope names) and the Total replay time of the scope.

• Replay Report Details
  Displays the replayed operations (operation number and operation name), Replay time of the scope^#1, Start Scope (scope IDs and scope names^#2), End Scope (scope IDs and scope names^#2), and the number of the tags that match the Filter Conditions. Note that the number of the tags that match the Filter Conditions is displayed only for the HTML operations.


#1

The Replay time is displayed to three places of decimals.

#2

If multiple scopes are specified in one operation, only scope name is displayed.

• Message Information
  Displays the operations where errors occur (operation number and operation name) and the error message information.
