The IE Recorder (main) window is used to define an IE scenario. This window is provided in three modes: the record mode, edit mode, and replay mode. The record mode is used to define a series of Internet Explorer operations on the screen as an IE scenario. The edit mode is used to edit an IE scenario. The replay mode is used to replay an IE scenario and measure the response time.

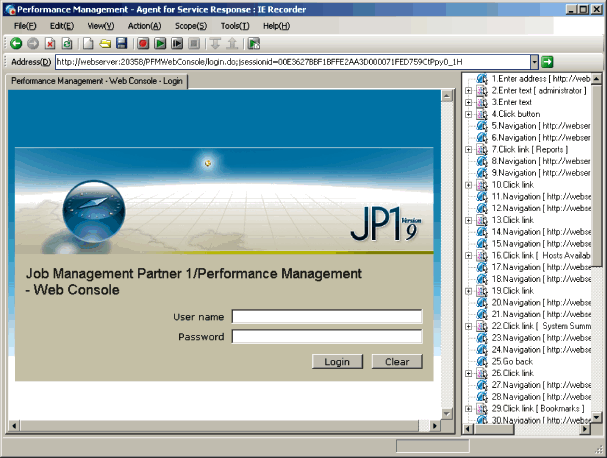

Figure 6-3 IE Recorder (main) window

The following describes the displayed items.

Titlebar:

Displays the title of the IE Recorder and the filename of the IE scenario displayed on the IE Recorder (main) window.

Toolbar:

Frequently used functions on the IE Recorder (main) window are placed as buttons.

Go Back button

Displays the previously-viewed URL in the browser history in the IE window section.

Go Forward button

Displays the subsequently-viewed URL in the browser history in the IE window section.

Stop button

Stops rendering the page in the IE window section.

Refresh button

Refreshes the page in the IE window section.

New button

Creates a new IE scenario.

Open button

Opens an existing IE scenario file and displays the IE scenario.

Save button

Saves the recorded or edited IE scenario.

Record button

Records the IE scenario.

Replay button

Replays the IE scenario.

Replay by Step button

Replays the IE scenario by step.

Stop Recording/Relaying button

Stops recording or replaying the IE scenario.

Set Start Scope button

Displays the Start Scope Settings window for selecting the scope as a start point. The start-point scope is added in front of the selected operation in the Operation list.

Set End Scope button

Displays the End Scope Settings window for selecting the scope as an end point. The end-point scope is added behind the selected operation in the Operation list.

Measurement Test button

Replays the recorded IE scenario and conducts the measurement test.

Addressbar:

Displays the content of the navigation in the IE window section (i.e. URL). This addressbar does not hold the browser history. The drop-down list shows the URLs defined in the IE Recorder action condition definition file.

When you enter a URL and then click the button or press the Enter key, the page whose URL you have entered is displayed in the IE window section.

To use an IP address to specify a host name, use an IPv4 dotted-decimal address (for example: http://172.16.233.12/example.html) or an IPv6 hexadecimal address enclosed in square brackets, using colons as separators (for example: http://[ACE6:45:75:91::1]/example.html).

Go button

Displays the URL page you entered in the Address the IE window section.

IE window section:

Displays the URL page you entered in the Address. In the IE window section, you can operate in the same way you operate the Internet Explorer. Note that if you use the keyboard operation an IE scenario can be recorded improperly. It is recommended that you use the mouse operation in the IE window section. On the tabs, the page title is displayed. When a new window is displayed while you operate in the IE window section, a tab to display that window is automatically added. If you use the script to close the window, the tab is closed. However, when there is only one tab, you cannot close the tab.

The following table shows the result of the operations in relation to the number of tabs:

Table 6-1 Result of operations in relation to number of tabs

No.	Number of tabs in the IE window section	Operation	Result of operation
1	1 #1	Open window #2	Add a new tab to render the content of the new window.
2		Close window	Immediately after close the tab, add a new tab displaying a blank page.
3	More than 1	Open window #2	Add a new tab to render the content of the new window.
4		Close window	Close a tab. Which tab to close depends on the script.
5		Close tab	Close the tab. When you click View menu and then Close Tab, close the active tab. When you close tab from the context menu, close the tab which you have clicked.

Notes:

• These operations do not change the mode of the IE Recorder window.
• You cannot add a new tab from the menu.

#1:

When there is only one tab, you cannot close the tab.

#2:

To open window in the IE window section means:

• Click the link with the Shift key down.
• Click the link whose value of the target attribute is _blank.
• Open window by using scripts.

#3:

To close window in the IE window section means:

• Close window by using scripts.

Note:

You should note the following when you define IE scenarios:

• Your navigations operations in the IE window section depend on the Internet Explorer settings on the machine where PFM - Agent for Service Response is installed. This means that if an application that affects Internet Explorer operations is running when you define IE scenarios that application may affect the IE Recorder also picks up and records these effects.
• On the page displayed in the IE window, a script that controls the window itself (for instance, to resize it) may not function normally. However, a script that opens a new window to display a page can be executed.

Operation list:

Lists in the tree format the recorded operational information, the start scopes, and the end scopes.

The display format of the operation list is as follows:


Operation List
   +--Tag info
   |    +--Tag name:tag-name
   |    +--Attributes
   |    |   +-- attribute-name=attribute-value
   |    |   ...
   |    +--Inner text:contents-of-inner-text
   |    +--Tag position
   |    |   +--Within the same tag:nth-occurrence-within-the-same-tag
   |    |   +--Within the same inner text:nth-occurrence-within-the-same-inner-text
   |    +--Same tag count:number-of-the-same-tags
   |    +--Same inner text count:number-of-the-same-inner-text
   |    +--Page transition:Occurred or Not occurred


Scope information is displayed on the operation list. The display format of the scope information is as follows:

+operations-information-1

+start-scope-information

+operations-information-2

+end-scope-information

+operations-information-3

Operational Information

Information of each operation is displayed in the below format:


operation-icon operation-number operation-name value


Operation number is the number assigned among the operations within the operation list. Operation number starts from 1 and are assigned to each operation from the top operation. If you delete an operation, operation numbers are re-assigned automatically from the top operation. Note that operation numbers are not assigned to scopes.

Among the operational information displayed in the Operation list, the following table lists shows the operation icons, operation names, and its values:

Table 6-2 Operation information in the Operation list

Operation icon	Operation name	Value	Description
	Click link	The value of the inner text	Clicking links on the page in the IE window.
	Enter text	The value of the entered text in the text box (the password is not displayed)	Entering texts in the text box on the page in the IE window.
	Select check box	The value of the inner text	Selecting check boxes or radio buttons on the page in the IE window.
	Select value	The value of the inner text	Selecting drop-down list on the page in the IE window.
	Click button	The value of the inner text	Clicking buttons on the page in the IE window.
	Enter address	The entered URL	Entering URL on the addressbar in the IE window, and then clicking button or pressing the Enter key.
	Go forward	--	From the menu in the IE window selecting Go forward, or clicking button.
	Go back	--	From the menu in the IE window selecting Go back, or clicking button.
	Refresh	--	From the menu in the IE window selecting Refresh, or clicking button.
	Navigation	The URL of the accessed page	Operations representing the URL access. Note that the Navigation operations are not Click link operations. Rather, the Navigation operations are the URL access operations without entering the URLs in the addressbar or so.
	Close tab	The page title on the tab	Closing the tab in the IE window.
	Popup dialog box	--	Operations in the pop-up dialog box when you operate in the IE window.
	Tag-name tag	--	Operations of the tags which the IE Recorder can record by default but are not listed above (except, for instance, Click link or Enter text).
	user-defined-operation-name	--	Operations which users defined. You can define the user-defined operation names by registering in the IE Recorder action condition definition file (jpcvierec.conf).

Legend:

--: None

Tag info:

Tag info displays the information when recording is done. The following table shows the contents of the Tag info in the Operation list:

Table 6-3 Tag info displayed in Operation list

Displayed information		Description
Tag name		Tag name when recording is done.
Attributes		Attributes of the tag. If the tag has multiple attributes, displays all the attributes. Attributes with the default values are displayed although not defined in the HTML file.
Inner text		Displays the inner text (the string between the start tag and the end tag).
Tag position	Within the same tag	Displays the nth occurrence among the same tag in the HTML file.
	Within the same inner text	Displays the nth occurrence among the tags with the same inner text.
Same tag count		Displays the number of the same tags in displayed in the Tag name of the HTML file. This count includes the operation-target tag itself.
Same inner text count		Displays the number of the tags with the same inner text. This count includes the operation-target tag itself.
Page transition		Displays whether the page transition occurred. If occurred, Occurred is displayed. If not, Not occurred is displayed.#1

#1

Always display Not occurred.

Statusbar:

Displays the operation status, the page processing status, and the mode of the IE Recorder.

Operation status:

Displays the same information when you operate Internet Explorer. For example, displays Done when the page rendering is completed, and displays the linked URL when the mouse is over the link.

Page processing status:

Display the page processing status of the page in the IE window in a progressbar.

Mode of the IE Recorder:

The displayed information depends on the mode:

• Edit Mode
  Displays none.

• Record Mode
  Displays Recording Mode.

• Replay Mode
  Displays Replay Mode.


The following table lists the shows the menu items in the IE Recorder (main) window:

Table 6-4 Menu items in the IE Recorder (main) window

Menu bar	Menu command	Function
File	New	Creates a new IE scenario.
	Open	Opens the existing IE scenario file and display the IE scenario.
	Save	Saves the recorded or edited IE scenario.
	Save As	Saves the recorded or edited IE scenario under a different storage file name.
	Exit	Exits the IE Recorder (main) window.
Edit	Delete	Delete one operation selected in the Operation list.
	Delete All Operations after the Selected Operation	Deletes all operations after the selected operation in the Operation list.
	Operation Settings	Displays the Operation Settings window where you can see and edit the settings. Edit the settings when the target HTML file is modified after recording or when the IE scenario cannot be replayed properly.
	Change Password	Displays the Change Password window where you can change the password when the IE scenario is recorded. For details about the kind of passwords you can change, see 6.2.3 Change Password window.
	IE Recorder Settings	Displays the IE Recorder Settings window where you can change the settings about recording and replaying the IE scenario.
View	Go To	Back	Displays the previously-viewed URL in the browser history in the IE window section.
		Forward	Displays the subsequently-viewed URL in the browser history in the IE window section.
		Home Page	Displays the home page in the IE window section.
	Stop	Stops rendering the page in the IE window section.
	Refresh	Refresh the page in the IE window section.
	Source	Displays the HTML source code of the currently viewed page. If the currently viewed page does not contain HTML source code, displays none. You can display the source code even if the page forbids displaying the source code.
	Close Tab	Closes the tab in the IE window section.
Action	Record	Records the IE scenario. If you already recorded one or more operations, adds operations to the existing record.
	Replay	Replays the IE scenario. Use this when you check whether the IE scenario is properly replayed.
	Replay by Step	Replays the IE scenario by step. As you watch the IE scenario step by step, you can check the replayed page and the next operation-target link.
	Stop	Stops recording or replaying the IE scenario.
	Set Breakpoint	Sets breakpoint in the selected operation. You can set multiple breakpoints. Use breakpoints when you stop the IE scenario on the way to check the IE scenario.
	Delete Breakpoint	Deletes breakpoint. Note that you cannot resume replaying when you delete breakpoint of the operation which you paused while you replayed IE scenario.
	Measurement Test	Replays the recorded IE scenario and starts measurement. Use this test when you check the guideline threshold value, the timeout value, the factors of replay failure.
Scope	Set Start Scope	Displays the Start Scope Settings window to set the start scope. Add the selected start scope in front of the selected operation in the Operation list.
	Set End Scope	Displays the End Scope Settings window to set the end scope. Add the selected end scope behind the selected operation in the Operation list.
	Delete Scope	Deletes the selected scope in the IE scenario.
	Rename Scope	Renames the name of the selected scope.
	Scope List	Displays the list of scopes.
Tools	Simplified Registration	Registers the measurement conditions to the measurement condition registration file, based on the information of the currently displaying IE scenario. Before you register the measurement conditions, make sure that you stop PFM - Agent for Service Response in advance. If the IE scenario file exists, the following measurement condition is added to the measurement condition registration file: TASKID: the lowest and unused task ID is given. TASKLABEL: IE Scenario-Task-ID (Task-ID is replaced by the value of TASKID) INTERVAL: 180 TIMEOUT: 30 IESCENA_FILE: IE-scenario-file-name
	Edit esptask.xml	Opens and edits the measurement condition registration file by the text editor. When you edit the measurement condition registration file, make sure that you stop PFM - Agent for Service Response.
	Internet Options	Displays the Internet Properties dialog box in the IE windows.
Help	About	Displays the version information for the PFM - Agent for Service Response.

Note:

If you edit the measurement condition registration file on the PFM - Web Console, you do not need to stop PFM - Agent for Service Response in advance. Therefore, it is recommended that you edit the measurement condition registration file on the PFM - Web Console.

Behavior when replaying IE scenarios

The replaying operation is highlighted when you replay IE scenarios.

• Replay
  The next operation is highlighted when each recorded operation is replayed.

• Replay by step
  The next operation is highlighted and stops replaying each time you replay by step.

• Replay until breakpoint
  The operation after the breakpoint is highlighted when replaying stops.

• While replaying, you change the filtering condition or tag position on the Operation Target page on the Operation Settings window.
  Change the highlighted operation. If the target operation does not exist after the change, turn highlight off.


Accelerator keys for IE Recorder cannot be used when the Internet Explorer window is active

In some cases, you cannot use some accelerator keys for IE Recorder menubar while the Internet Explorer window is active. This is because the setting of turning shortcuts off takes precedence when an Internet Explorer window is active.

The following table lists the accelerator keys turned off when the Internet Explorer setting takes precedence. For details about the shortcut keys in Internet Explorer, see Internet Explorer help.

Table 6-5 Accelerator keys turned off due to the Internet Explorer setting

Accelerator keys turned off	IE Recorder operation in Internet Explorer 7 to 10
File	Y
Edit	Y
View	N
Action	Y
Scope	N
Tools	N
Help	Y

Legend:

Y: Available

N: Unavailable

<ALT key + [Key]>: Shortcut [Key] for IE

Note:

The availability of the accelerator keys might vary due to:

• The Service Pack for Internet Explorer, Service Release for Internet Explorer, Windows Update, or so.
• The HTML documents or the scripts.
• The Add-ons (ActiveX components, BHO (Browser Helper Object), or so) or so.
