The following tables show the records that are used to collect information about the operating status of processes in PFM - Agent for Platform.

Table 6-2 Records used to collect information about the operating status of processes (on a per-process basis)

Record	Monitoring target	Information stored	Collection method
Application Process Overview (PD_APS)	Process	Performance data that shows the status of a process at a particular point in time	Real time
Application Process Interval (PD_APSI)		Performance data that shows the status at a particular point in time of a process that has been set for process monitoring	Real time Historical

Table 6-3 Records used to collect information about the operating status of processes (on a per-application basis)

Record	Monitoring target	Information stored	Collection method
Application Summary Extension (PD_APP2)	Process	Performance data that summarizes by application the records stored in the Application Process Overview (PD_APS) records at a particular point in time	Real time Historical
Application Process Detail (PD_APPD)		Performance data that summarizes by process at a particular point in time the records that are being monitored on a per-application basis and that are stored in the Application Process Overview (PD_APS) records

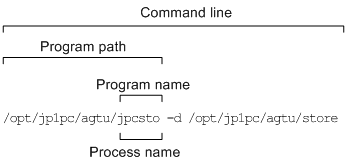

The following example illustrates the relationship between the process name, program name, program path, and command line, which are used in the settings for collecting information about the operating status of processes.
