installation-folder\agtt\agent\jpcuser\debug\jpcuser_dbg_{01|02|03|04|05}.log

A debug log file consists of four sections:

• Product information
• The execution time and process ID of the jpcuser command
• Header line
• Check results

A check result is output for each data line in the user-created data. A comma is used to separate items.

The following table explains the items that are output to a debug log file.

Table 5-27 Items that are output to a debug log file

No.	Section	Item	Value	Explanation
1	Product information	Product name	Product Name=PFM-Agent for Platform (Windows)	The PFM - Agent product name.
2		Format version	FormVer=0001	The version of the user-created data format.
3	Execution time and process ID of the jpcuser command	Execution time	YYYY/MM/DD hh:mm:ss	YYYY: Year MM: Month DD: Day hh: Hour mm: Minute ss: Second
4		Process ID	PID=xxxx	The process ID of the jpcuser command.
5	Header line	Header	Example (for the PD_UPD record): LineNumber, Result, APITime, Recordtype, Transactiontype, t, ks, ki, L1, L2, UL1, UL2, F1, F2, SS1, SS2, SS3, SS4, SM1, SM2, SL1	The debug log header. The header names correspond to the field options and field names specified on the option header line in a user-created data file. For the correspondence, see Table 5-28 Header line items in a debug log file and their corresponding field options and field names. Note that the header items differ depending on the user-defined records that are to be stored.
6	Check result	User-created data file name	Example: File=D:\Program Files\HITACHI\jp1pc\agtt\agent\jpcuser\UPIB_sample01.txt	The user-specified path name of a user-created data file that is read is output.
7		Error or warning message	KAVFxxxxx-x	If an error or other problem that the user should be made aware of occurs on a line in the user-created data, the applicable error and warning messages are output at the beginning of the line.
8		Line number	Numeric value	The number of a line in the user-created data.
9		Result code	OK	Success. The line in the user-created data was free of problems and was converted successfully.
10			WG	Warning. The line in the user-created data contained a problem but was converted nevertheless. When WG is output, a warning message is also output.
11			NG	Failure. The line in the user-created data contained a problem and was not converted. When NG is output, a warning message or error message, depending on the cause of the problem, is also output. If a warning message is output, processing continues. If an error message is output, processing stops.
12			BL	Null line. The line in the user-created data is empty and is ignored.
13		Data	Data	The contents of the line in the user-created data. For an empty numeric field, 0 is output. For an empty string field, two quotation marks ("") are output.

The following table lists the items output on the header line in a debug log file and their corresponding field options and field names specified on the option header line in a user-created data file.

Table 5-28 Header line items in a debug log file and their corresponding field options and field names

No.	Item on the header line in a debug log file	Field option specified on the option header line in a user-created data file	Field name (PFM - View name)	Explanation
1	Line Number	--	--	Number of the line on which the relevant data exists
2	Result	--	--	Check result of the relevant data
3	API Time	--	Collect Time	Time that the relevant data was converted
4	Record type	--	Record Type	Record type
5	Transaction type	tt	Trans Type	Transaction type
6	t	t	User Time 1	Time value
7	ks	ks	Trans String Key	String-type transaction key
8	ki	ki	Trans Data Key	Numeric-type transaction key
9	L1	l	User Long 1	Integer value of type long
10	L2	l	User Long 2	Integer value of type long
11	L3	l	User Long 3	Integer value of type long
12	L4	l	User Long 4	Integer value of type long
13	L5	l	User Long 5	Integer value of type long
14	L1R	lr	User Long Roll 1	Cumulative integer value of type long
15	L2R	lr	User Long Roll 2	Cumulative integer value of type long
16	L3R	lr	User Long Roll 3	Cumulative integer value of type long
17	L4R	lr	User Long Roll 4	Cumulative integer value of type long
18	L5R	lr	User Long Roll 5	Cumulative integer value of type long
19	UL1	u	User Unsigned Long 1	Integer value of type unsigned long
20	UL2	u	User Unsigned Long 2	Integer value of type unsigned long
21	UL3	u	User Unsigned Long 3	Integer value of type unsigned long
22	UL4	u	User Unsigned Long 4	Integer value of type unsigned long
23	UL5	u	User Unsigned Long 5	Integer value of type unsigned long
24	UL1R	ur	User Unsigned Long Roll 1	Cumulative integer value of type unsigned long
25	UL2R	ur	User Unsigned Long Roll 2	Cumulative integer value of type unsigned long
26	UL3R	ur	User Unsigned Long Roll 3	Cumulative integer value of type unsigned long
27	UL4R	ur	User Unsigned Long Roll 4	Cumulative integer value of type unsigned long
28	UL5R	ur	User Unsigned Long Roll 5	Cumulative integer value of type unsigned long
29	F1	f	User Float 1	Floating point number value
30	F2	f	User Float 2	Floating point number value
31	F3	f	User Float 3	Floating point number value
32	F4	f	User Float 4	Floating point number value
33	F5	f	User Float 5	Floating point number value
34	F1R	fr	User Float Roll 1	Cumulative floating point number value
35	F2R	fr	User Float Roll 2	Cumulative floating point number value
36	F3R	fr	User Float Roll 3	Cumulative floating point number value
37	F4R	fr	User Float Roll 4	Cumulative floating point number value
38	F5R	fr	User Float Roll 5	Cumulative floating point number value
39	SS1	ss	User String 1	16-byte character string
40	SS2	ss	User String 2	16-byte character string
41	SS3	ss	User String 3	16-byte character string
42	SS4	ss	User String 4	16-byte character string
43	SS5	ss	User String 5	16-byte character string
44	SM1	sm	User String 5 (for the PD_UPD or PI_UPI record) User String 6 (for the PD_UPDB or PI_UPIB record)	32-byte character string
45	SM2	sm	User String 6 (for the PD_UPD or PI_UPI record) User String 7 for the (PD_UPDB or PI_UPIB record)	32-byte character string
46	SM3	sm	User String 8	32-byte character string
47	SM4	sm	User String 9	32-byte character string
48	SM5	sm	User String 10	32-byte character string
49	SL1	sl	User String 7 (for the PD_UPD or PI_UPI record) User String 11 (for the PD_UPDB or PI_UPIB record)	64-byte character string
50	SL2	sl	User String 12	64-byte character string
51	SL3	sl	User String 13	64-byte character string
52	SL4	sl	User String 14	64-byte character string
53	SL5	sl	User String 15	64-byte character string

Legend:

--: Not applicable

The following figure shows an example of information output to a debug log file.

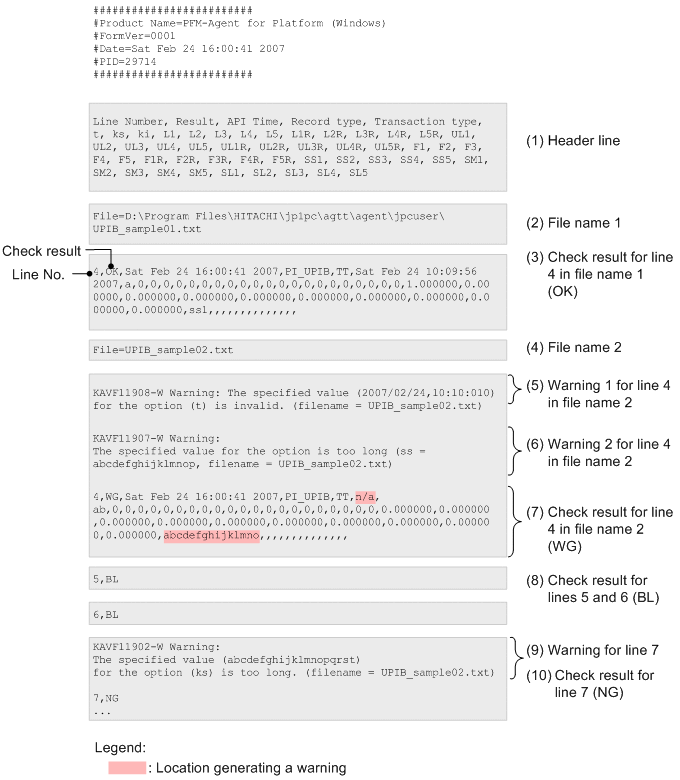

Figure 5-6 Example of information output to a debug log file

The following explanations are keyed to the numbers in parentheses in the figure.

1. This line is the header line.
2. The user-specified path name of a user-created data file loaded into the command is output.
3. Output of the check result for the user-created data file begins with this line. The number (4) at the beginning of the line indicates the number of the line in the user-created data file. In a user-created data file, the first line contains product information, the second line contains version information, and the third line is the option header line. Therefore, checking normally begins with line 4. If the line contains no problems, OK is output for Result.
4. The user-specified path name of another user-created data file that is read is output.
5. This line warns the user of a problem on line 4 in the UPIB_sample02.txt file. Because the t value (2007/02/24,10:10:010) did not have the expected format, n/a has been output for the element corresponding to t (see (7) in the figure).
6. This line also warns the user of a problem on line 4 in the UPIB_sample02.txt file. Because the specified ss value (abcdefghijklmnop) exceeded the predefined maximum of 15 bytes, a warning message has been output. and a truncated value (abcdefghijklmno) has been output for the element corresponding to SS1 (see (7) in the figure).
7. Because the warnings indicated by (5) and (6) have been issued, the check result code WG has been output for Result for line 4.
8. The check result code BL indicates that the line is a null line.
9. This line warns the user of a problem on line 7. A warning message has been output because the specified ks value exceeded the predefined maximum of 19 bytes.
10. Because the value of the ks unique key on line 7 in the user-created data file was incorrect, the value could not be used. Accordingly, NG has been output for Result. If the value of Transaction type, ks, or ki, which is a unique key, is incorrect, the line is not processed.
