4. System Design
4.4 Examining the system configuration
4.4.13 JP1/NETM/NM - Manager linkage configuration

4.4.13 JP1/NETM/NM - Manager linkage configuration

By linking with JP1/NETM/NM - Manager, JP1/IT Desktop Management can control network connections monitored on network control appliances.

Important note: You cannot place a network control appliance in a network segment with the network monitor enabled.

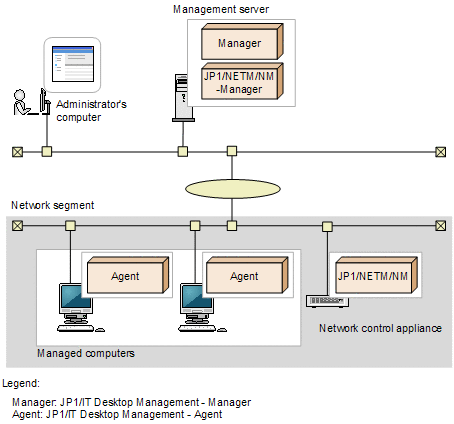

The following figure shows an example of a single-server JP1/NETM/NM - Manager linkage configuration.

[Figure]
