7.4.12 Edit Variable dialog box

Use the Edit Variable dialog box to edit a variable for a service. To display the Edit Variable dialog box, in the Edit Service Definition dialog box, click the Edit button in the Variables section.

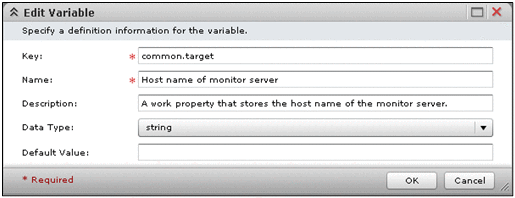

Figure 7-43 Edit Variable dialog box (when string is selected for Data Type)

This dialog box displays the following items:

Key text box

Enter the property key. The text box allows a maximum of 128 characters.

Name text box

Enter the property name of the variable. The text box allows a maximum of 128 characters.

Description text box

Enter a brief description of the variable. The text box allows a maximum of 256 characters.

Data Type list box

Select the data type of the variable.

• string
  Select this option to set the data type to string.

• password
  Select this option to set the data type to password.


Default Value

Enter the default value of the variable. The text box allows a maximum of 1,024 characters. If you specify password for the data type, each of the entered characters is displayed as .

OK button

Click this button to apply the changes.

Cancel button

Click this button to close the Edit Variable dialog box.
