7.4.9 Create Output Property for Service dialog box

Use the Create Output Property for Service dialog box to add an output property of a service. To display the Create Output Property for Service dialog box, in the Edit Service Definition dialog box, click the Add button in the Output Properties section, or in the Specify Plug-in Output Properties for Mapping dialog box, click the Add Output Property button.

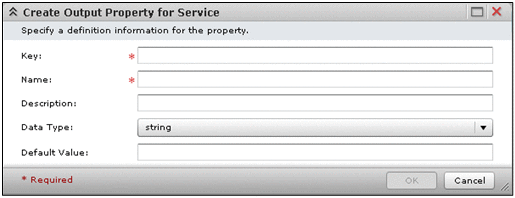

Figure 7-40 Create Output Property for Service dialog box (when string is selected for Data Type)

This dialog box displays the following items:

Key text box

Enter the property key. The text box allows a maximum of 128 characters.

Name text box

Enter the name of the property. The text box allows a maximum of 128 characters.

Description text box

Enter a brief description of the property. The text box allows a maximum of 256 characters.

Data Type list box

Select the data type of the output property.

• string
  Select this option to set the data type to string.

• password
  Select this option to set the data type to password.


Default Value

Enter the default value of the output property. The text box allows a maximum of 1,024 characters. If you specify password for the data type, each of the entered characters is displayed as .

OK button

Click this button to add the output property.

Cancel button

Click this button to close the Create Output Property for Service dialog box.
