7.3.7 View Output Property for Service dialog box

Use the View Output Property for Service dialog box to view an output property for a service. To display the View Output Property for Service dialog box, in the View Service Definition dialog box, click the View button in the Output Properties section.

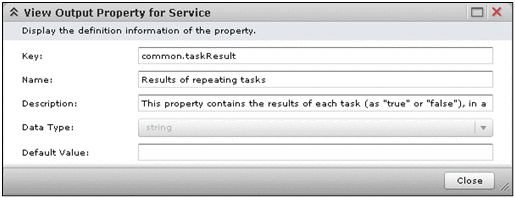

Figure 7-26 View Output Property for Service dialog box

This dialog box displays the following items:

Tip:

The View Output Property for Service dialog box is read only. You cannot change the settings here.

Key text box

Shows the property key of the output property.

Name text box

Shows the name of the output property.

Description text box

Shows a brief description of the output property.

Data Type list box

Shows the data type of the output property.

• string
  If this option is selected, the data type has been set to string.

• password
  If this option is selected, the data type has been set to password.


Default Value text box

Shows the default value of the output property.

Close button

Click this button to close the View Output Property for Service dialog box.
