7.3.4 Service template view dialog box

Use the service template view dialog box to view the definitions of a service template. To display the service template view dialog box, click the View button in the Service Template List dialog box.

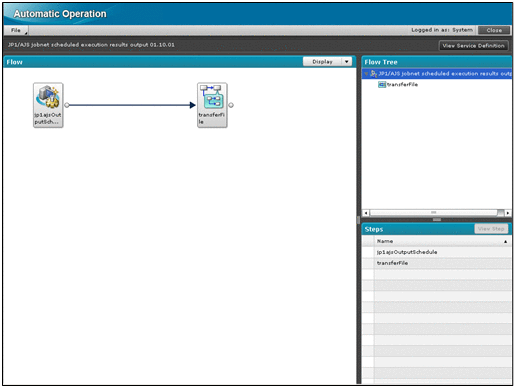

Figure 7-22 Service template view dialog box

This dialog box displays the following items:

Tip:

The service template view dialog box is read only. You cannot change the settings here.

View Service Definition button

Click this button to view the definition information of a service. The View Service Definition dialog box appears.

Flow view

Displays the order of execution steps. If you double-click a step that uses a flow plug-in or a repeated execution plug-in, the underlying flow is displayed. If you double-click another type of step, the View Step dialog box appears. You can select multiple step icons. If there is a step for which no mapping parameter value has been input for an input property that requires the mapping parameter setting, is displayed on the corresponding step icon.

Display list box

Select the display magnification of the Flow view (25%, 50%, 75%, or 100%).

If you right-click a step icon, you can select one of the following operations:

• View
  If you select this item, the View Step dialog box appears.

• Copy
  Select this item to copy the selected step and relational line. The copied step and relational line will be pasted in the Flow view of the service template editing view.


If you right-click any place other than step icons, you can select the following operation:

• Select All
  If you select this item, all the displayed steps and relational lines are selected. If there is a step that uses a flow plug-in or a repeated execution plug-in, the underlying steps and relational lines are also selected.


Flow Tree view

Displays a hierarchical view of the flow names of the service template. If you click a flow name, the underlying flows are displayed in the Flow view. If a flow contains a step for which no mapping parameter value has been input for an input property that requires a mapping parameter setting, is displayed on the corresponding icon.

Steps view

Displays a list of steps for the service template. If you select a step, the corresponding step icon in the Flow view is also selected. You can select multiple steps. If you click the column title of a display item, the data will be sorted in ascending or descending order.

View Step button

Click this button to view the selected step. The View Step dialog box appears.

Table 7-11 Items displayed in the Steps view (service template view dialog box)

Display item	Description
Input warning icon	If no mapping parameter value has been input for an input property that requires a mapping parameter setting, is displayed.
Name	Displays the name of the step.
