7.3.2 Service Template List dialog box

Use the Service Template List dialog box to display a list of service templates, and to select a service template to be edited, copied, viewed, or deleted. To display the Service Template List dialog box, in the Service Template Editor Home view, click Create, Copy, View, or Delete, or in the service template editing view, select View in the Actions list box.

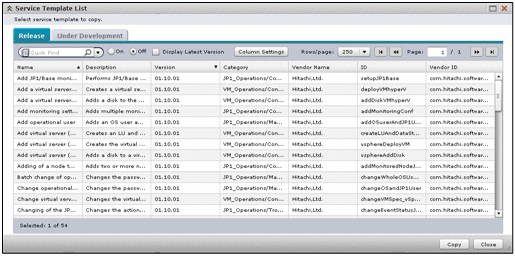

Figure 7-20 Service Template List dialog box (when displayed by clicking Copy in the Service Template Editor Home view)

This dialog box displays the following items:

Release tab

If you click this tab, a list of release service templates is displayed. To display the Release tab, in the Service Template Editor Home view, click Copy or View, or in the service template editing view, select View in the Actions list box.

Under Development tab

If you click this tab, a list of development service templates is displayed.

Quick Find text box

Enter a search term. The text box allows a maximum of 256 characters.

On radio button

If you select this radio button, the search result is applied to the list.

Off radio button

If you select this radio button, the search result is not applied to the list, and all service templates are displayed.

Display Latest Version check box

If you select this check box, only the latest versions of individual service templates are displayed. If you deselect this check box, all service templates are displayed.

Column Settings button

To select the items to be displayed in the list, click this button. If you click this button, the Column Settings dialog box appears.

Rows/page list box

Select the number of rows (30, 50, 100, 250, or 500) to be displayed per page in the list.

Service Template List

A list of service templates is displayed. If you click the column title of a display item, the data will be sorted in ascending or descending order. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 7-10 Items displayed in Service Template List (Service Template List dialog box)

Display item	Displayed by default	Description
Name	Yes	Displays the name of each service template.
Description	Yes	Displays a brief description of each service template.
Version	Yes	Displays the version of each service template.
Category	Yes	Displays the category name of each service template.
Vendor Name	Yes	Displays the vendor name of each service template.
ID	No	Displays the ID of each service template.
Vendor ID	No	Displays the vendor ID of each service template.

Legend:

Yes: Displayed by default, No: Hidden by default

Edit button

To edit the selected service template, click this button. If you click this button, the Service Template List dialog box closes, and the service template editing view appears in the right pane of the Editor window. The Edit button is displayed when the Service Template List dialog box is displayed after you click Edit in the Service Template Editor Home view.

Copy button

To copy the selected service template, click this button. If you click this button, the Copy Service Template dialog box appears. The Copy button is displayed when the Service Template List dialog box is displayed after you click Copy in the Service Template Editor Home view.

View button

To view the selected service template, click this button. If you click this button, the Service Template List dialog box closes, and the service template view dialog box appears. The View button is displayed when you click View in the Service Template Editor Home view, or when you click View in the Actions list box in the service template editing view.

Delete button

Click this button to delete the selected service template. If you click this button, a confirmation dialog box appears. If you click the OK button, the service template is deleted. The Delete button is displayed when the Service Template List dialog box is displayed after you click Delete in the Service Template Editor Home view.

Close button

Click this button to close the Service Template List dialog box.
