7.2.15 Edit Output Filter dialog box

Use the Edit Output Filter dialog box to set an output filter. An output filter is a regular expression used to extract the value to be set as an output property from the standard output value or the standard error output value. To display the Edit Output Filter dialog box, in the Edit Remote Command dialog box, click the Edit button in the Mapping Definition of Output Properties section.

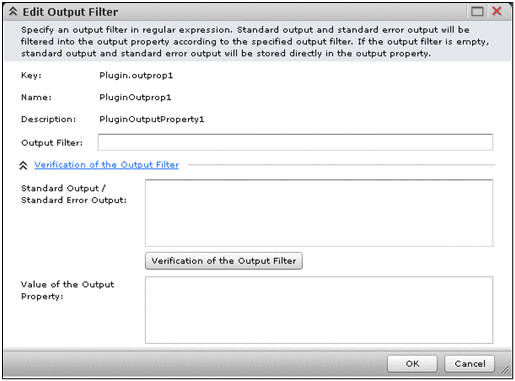

Figure 7-17 Edit Output Filter dialog box

This dialog box displays the following items:

Key

Shows the property key of the output property.

Name

Shows the name of the output property.

Description

Shows a brief description of the output property.

Output Filter text box

Enter an output filter. The text box allows a maximum of 1,024 characters. Specify a regular expression that conforms to PCRE.

Verification of the Output Filter

If you click this, the Standard Output / Standard Error Output text box, the Verification of the Output Filter button, and the Value of the Output Property display area are displayed.

Standard Output / Standard Error Output text box

Enter test data to be used for verification of the specified output filter. The text box allows a maximum of 500,000 characters.

Verification of the Output Filter button

If you click this button, verification of the output filter starts, using the data entered in the Standard Output / Standard Error Output text box.

Value of the Output Property display area

Displays the result of verification of the output filter.

OK button

Click this button to apply the changes.

Cancel button

Click this button to close the Edit Output Filter dialog box.
