7.2.3 Plug-in view (Under Development tab)

Use the Plug-in view (Under Development tab) to create plug-ins, or to create or edit service templates by using the plug-ins you created. If you select the Under Development tab, a list of development plug-ins is displayed.

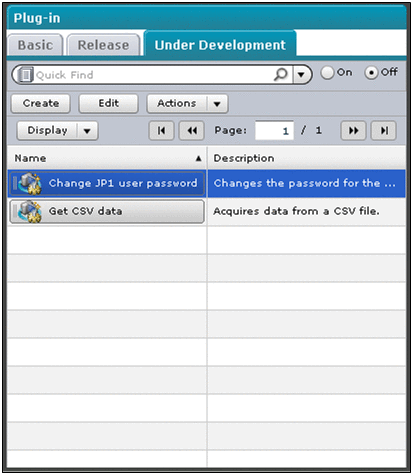

Figure 7-5 Plug-in view (Under Development tab)

The following items are displayed in this view:

Quick Find text box

Enter a search term. You can enter a maximum of 256 characters.

On radio button

If you select this radio button, the search result is applied to the list.

Off radio button

If you select this radio button, the search result is not applied to the list, and all plug-ins are displayed.

Create button

To create a plug-in, click this button. If you click this button, the Create Plug-in dialog box appears.

Edit button

To edit a plug-in, click this button. If you click this button, the Edit Plug-in dialog box appears.

Actions list box

Specify an operation you want to perform on the plug-in.

• Set Resources
  To specify a resource file for the selected plug-in, select this option. If you select this option, the Set the Plug-in Resources dialog box appears.

• Copy
  To copy the selected plug-in, select this option. If you select this option, the Copy Plug-in dialog box appears.

• Delete
  To delete the selected plug-in, select this option. If you select this option, a confirmation dialog box appears. If you click the OK button, the plug-in is deleted.


Display list box

Select how to display a list of plug-ins.

• Display Latest Version
  If you select this check box, only the latest versions of individual plug-ins are displayed. If you deselect this check box, all plug-ins are displayed.

• Display number-of-rows Rows Per Page
  Select the number of rows displayed per page. For number-of-rows, you can select 30, 50, 100, 250, or 500.


List of plug-ins

A list of development plug-ins is displayed. If you click the column title of a display item, the data will be sorted in ascending or descending order.

Table 7-3 Items displayed in the list of plug-ins (Plug-in view (Under Development tab))

Display item	Description
Name	Displays the name of each plug-in.
Version#	Displays the version of each plug-in.
Description	Displays a brief description of each plug-in.

#

Version is displayed only when the Display Latest Version check box is not selected in the Display list box.
