7.1 Editor window

Use the Editor window to develop service templates and plug-ins.

To display the Editor window, select the Editor tab in the main window.

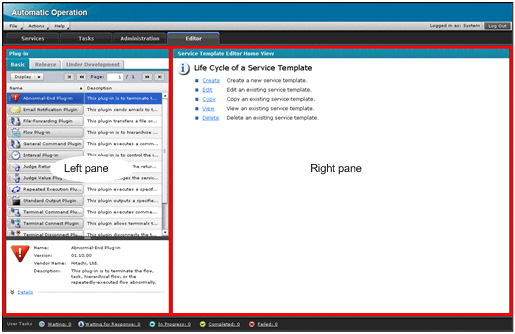

Figure 7-1 Editor window (when the Service Template Editor Home view is displayed in the right pane)

The following items are displayed in this window:

Left pane

Plug-in view

Use this view to display a list of plug-ins or to develop plug-ins. You can create, edit, copy, or delete plug-ins here.

Right pane

Either of the following views is displayed depending on your operation:

Service Template Editor Home view

Use this view to develop service templates. You can create, edit, copy, view, or delete service templates here. If you click an item, a corresponding window appears.

Service template editing view

Use this view to edit a service template. You can add, edit, or delete steps, or you can build or release a service template here. To display the service template editing view, click the Edit button in the Service Template List dialog box, or click the Save button in the Create Service Template dialog box or the Copy Service Template dialog box.
