6.8.1 Assign User Groups dialog box

Use the Assign User Groups dialog box to assign users to a user group.

To display the Assign User Groups dialog box, select a user in the User Groups view (Users tab) and then click the Assign User Groups button.

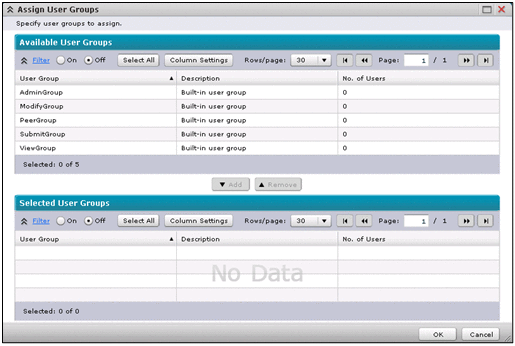

Figure 6-29 Assign User Groups dialog box

The following items are displayed in this dialog box:

Available User Groups

A list of available user groups is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box. If Hitachi Command Suite products are already installed, the user groups created by Hitachi Command Suite products are also available for selection.

Table 6-24 Items displayed in the list of available user groups (Assign User Groups dialog box)

Display item	Displayed by default	Description
User Group	Yes	Displays the name of each user group.
Description	Yes	Displays a brief description of each user group. In the case of a built-in user group, Built-in user group is displayed here.
No. of Users	Yes	Displays the number of users belonging to each user group.

Legend:

Yes: Displayed by default

Add button

If you select one of the available user groups and then click this button, the selected user group appears under Selected User Groups. You can select multiple user groups at a time.

Remove button

If you select one of the selected user groups and then click this button, the selected user group is removed from Selected User Groups. You can select multiple user groups at a time.

Selected User Groups

A list of user groups to be assigned to the user is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 6-25 Items displayed in the list of selected user groups (Assign User Groups dialog box)

Display item	Displayed by default	Description
User Group	Yes	Displays the name of each user group.
Description	Yes	Displays a brief description of each user group. In the case of a built-in user group, Built-in user group is displayed here.
No. of Users	Yes	Displays the number of users belonging to each user group.

Legend:

Yes: Displayed by default

OK button

To assign a user group to the user, click this button.

Cancel button

To close the Assign User Groups dialog box, click this button.
