5.2.1 Task Details dialog box

Use the Task Details dialog box to check the input/output properties of tasks or the progress of jobs.

To display the Task Details dialog box, click a task name in the Tasks view. Alternatively, select a task in the Tasks view, and then click the Show Task Details button.

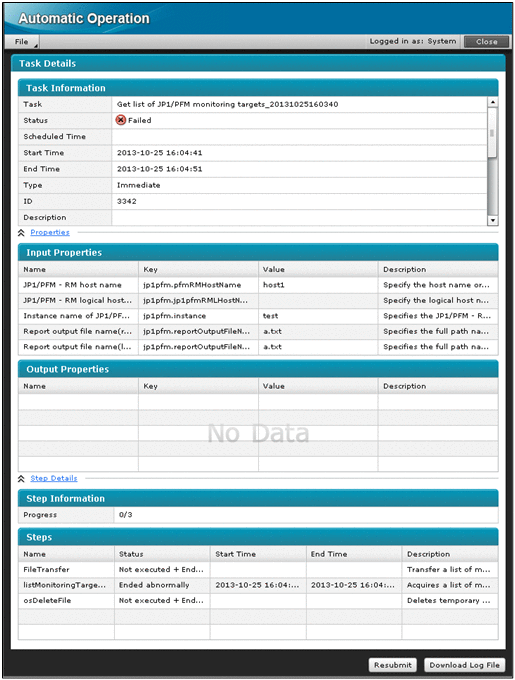

Figure 5-3 Task Details dialog box

The following items are displayed in this dialog box:

Task Information

Task information is displayed.

Task

The name of the task is displayed.

Status

The current status of the task is displayed.

Scheduled Time

The scheduled time for starting the task is displayed.

Start Time

The date and time of starting the task is displayed.

End Time

The date and time of ending the task is displayed. For tasks that have been canceled due to a schedule cancellation or restoration operation, the date and time of this operation is displayed here.

Type

The type of the task is displayed, such as an immediate task or a recurring task.

ID

The ID of the task is displayed.

Description

A brief description of the task is displayed.

Service

The name of the service that generated the task is displayed.

Resource Group

The resource group to which the task is registered is displayed.

Category

The name of the category to which the service that generated the task belongs is displayed.

Submitted By

The name of the individual who executed the service that generated the task is displayed.

Submitted At

The date and time of service submission is displayed.

Recurrence Pattern

The recurrence pattern is displayed.

Recurrence Time

The recurrence time is displayed.

Recurrence Start

The start date of recurrence is displayed.

Configuration Type

The service template configuration type is displayed.

Properties

If you click this text, the input/output properties of the task are displayed.

Input Properties

A list of input properties is displayed for the task. The list can be sorted in ascending or descending order by clicking the title of an item (column).

Table 5-2 Items displayed in the Input Properties list (Task Details dialog box)

Display item	Description
Name	Displays the name of each property.
Key	Displays the name of each property key.
Value	Displays the property value.
Description	Displays a brief description of each property.

Output Properties

A list of output properties is displayed for the task. The list can be sorted in ascending or descending order by clicking the title of an item (column).

Table 5-3 Items displayed in the Output Properties list (Task Details dialog box)

Display item	Description
Name	Displays the name of each property.
Key	Displays the name of each property key.
Value	Displays the property value.
Description	Displays a brief description of each property.

Step Details

If you click this text, the Step Information and Steps lists are displayed.

Step Information

Displays information about the highest-level flow.

Progress

Displays the progress of the highest-level flow.

Steps

Displays the list of jobs defined in the highest-level flow. The list can be sorted in ascending or descending order by clicking the title of an item (column).

Table 5-4 Items displayed in the Steps list (Task Details dialog box)

Display item	Description
Name	Displays the name of each step defined in the highest-level flow.
Status	Displays the status of each step. This information is used to estimate the progress of the step.
Start Time	Displays the date and time of starting the step in YYYY-MM-DD hh:mm:ss format.
End Time	Displays the date and time of ending the step in YYYY-MM-DD hh:mm:ss format.
Description	Displays a brief description of the step.

Enter Response button

This button is displayed only when the task is currently waiting for a response. If you click this button, the Respond dialog box appears.

Resubmit button

This button is displayed when the task is in a terminated, failed, or canceled state. If you click this button, the Submit Service dialog box appears, with the original properties entered for the task.

Download Log File button

This button is displayed when the task is in a state other than the waiting, on-hold, or canceled state. If you click this button, a download dialog box appears, which allows you to download a task log to a specified location, such as an operation terminal. The file name of a task log is displayed as task_task-ID_1.log by default. You can rename the file and save it.
