6.10.3 Inspection Analysis window

The following figure shows the Inspection Analysis window.

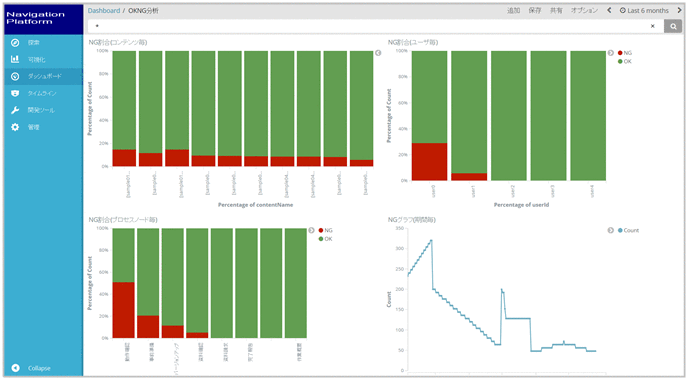

Figure 6‒13: Inspection Analysis window (in the default display)

The following describes the content displayed in the Inspection Analysis window.

Organization of this subsection

(1) NG rate (by content)
(2) NG rate (by user)
(3) NG rate (by process node)
(4) NG graph (by period)

(1) NG rate (by content)

The vertical axis shows the ratio between the numbers of OK and NG error flags in the operation logs, and the horizontal axis shows the content names.

Important note: The number of NG error flags contains all error flag values (WARNING and CANCEL) other than OK.

To Page Top

(2) NG rate (by user)

The vertical axis shows the ratio between the numbers of OK and NG error flags in the operation logs, and the horizontal axis shows the user IDs.

Important note: The number of NG error flags contains all error flag values (WARNING and CANCEL) other than OK.

To Page Top

(3) NG rate (by process node)

The vertical axis shows the ratio between the numbers of OK and NG error flags in the operation logs, and the horizontal axis shows the process node names. If multiple processes have the same process node name, their analysis results are combined and displayed under the same name even if their content names, including process nodes, are different.

Important note: The number of NG error flags contains all error flag values (WARNING and CANCEL) other than OK.

To Page Top

(4) NG graph (by period)

The vertical axis shows the number of NG error flags in the operation logs, and the horizontal axis shows the periods.

Important note: The number of NG error flags contains all error flag values (WARNING and CANCEL) other than OK.
