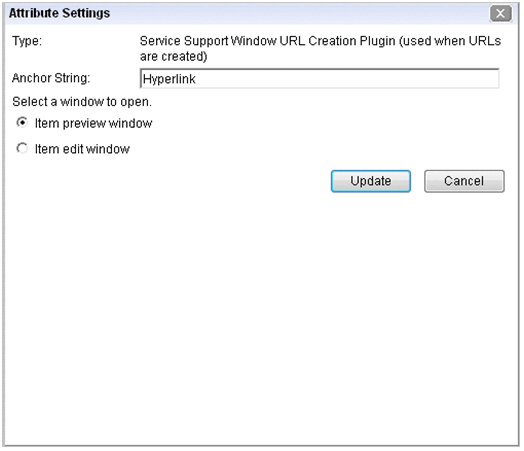

5.10.3 Items in the Attribute Settings window (Service Support Window URL Creation Plugin part)

(1) Anchor String text box

Enter the string to display as the anchor text. The default is Hyperlink. You must enter an anchor string. An error occurs if:

• The character string is longer than 1,024 bytes (when using double-byte characters, use a maximum of 340 characters).

• You enter an empty character string.

• The character string contains a character whose ASCII code is 0x00 to 0x1F or 0x7F.

To Page Top

(2) Window selection radio buttons

Specify which JP1/IM-SS window to open by selecting one of the following radio buttons:

• Item preview window

• Item edit window

For details about the JP1/IM-SS windows, see the JP1/Integrated Management - Service Support Administration Guide or the JP1/Service Support Operator's Guide.
