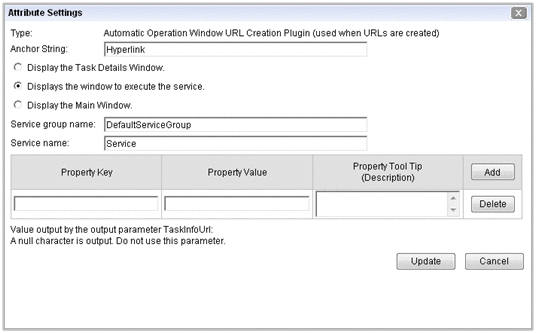

5.7.3 Items in the Attribute Settings window (Automatic Operation Window URL Creation Plugin part)

(1) Anchor String text box

Enter the character string to display as the anchor text for the URL. The default is Hyperlink. You must enter an anchor string. An error occurs in the following circumstances:

• The character string is longer than 1,024 bytes (when using double-byte characters, use a maximum of 340 characters).

• You enter an empty character string.

• The character string contains a character whose ASCII code is 0x00 to 0x1F or 0x7F.

To Page Top

(2) Display the Task Details Window. radio button

Specify whether to display the JP1/AO Task Details dialog box.

To Page Top

(3) Displays the window to execute the service. radio button

Specify whether to display the JP1/AO Submit Service dialog box.

When this radio button is selected, the property settings area appears. When cleared, the property settings area disappears and any property information you had set in the area is lost.

To Page Top

(4) Display the Main Window. radio button

Specify whether to display the main window of JP1/AO.

To Page Top

(5) Service group name text box

Specify the service group name of the JP1/AO service using a maximum of 1,024 characters.

When linking with a version of JP1/AO earlier than 11-00, the service group name is equivalent to the resource group name. You cannot use the following characters:

• Control characters (characters whose ASCII code is 0x00 to 0x1F or 0x7F to 0x9F)

To Page Top

(6) Service name text box

Specify the service name of the JP1/AO service using a maximum of 1,024 characters. The service name cannot contain the following characters:

• Control characters (characters whose ASCII code is 0x00 to 0x1F or 0x7F to 0x9F)

To Page Top

(7) Property settings area

This area appears when the Displays the window to execute the service. radio button is selected.

• Property key text box

  Specify a property key for use by the JP1/AO service, using a maximum of 1,024 characters. The value you specify appears under Input from Part when the Automatic Operation Service Execution Plugin part is placed in the guide area. The property key cannot contain the following characters:

  Control characters (characters whose ASCII code is 0x00 to 0x1F or 0x7F to 0x9F)

• Property value text box

  Specify a property value for use by the JP1/AO service, using a maximum of 1,024 characters. You cannot use the following characters:

  Control characters (characters whose ASCII code is 0x00 to 0x1F or 0x7F to 0x9F)

• Property Tool Tip (Description) text box

  Specify a description of the property key to be displayed under Input from Part for an Automatic Operation Service Execution Plugin part placed in the guide area, using a maximum of 64 characters. You cannot use the following characters:

  Characters whose ASCII code is 0x00 to 0x09, 0x0B, 0x0C, 0x0E to 0x1F, or 0x7F

• Add button

  Adds a new line to the bottom of the property setting area. The maximum number of lines is 20.

• Delete button

  Deletes the line where you clicked the Delete button.
