1.7 Basic operations performed when creating Operational Content
Before you can start creating Operational Content, you need to log in to Navigation Platform and display the Operational Content Editing Window. In this window, you create Operational Content by placing its constituent elements (nodes and parts) in the operational flow area and guide area and editing these elements.

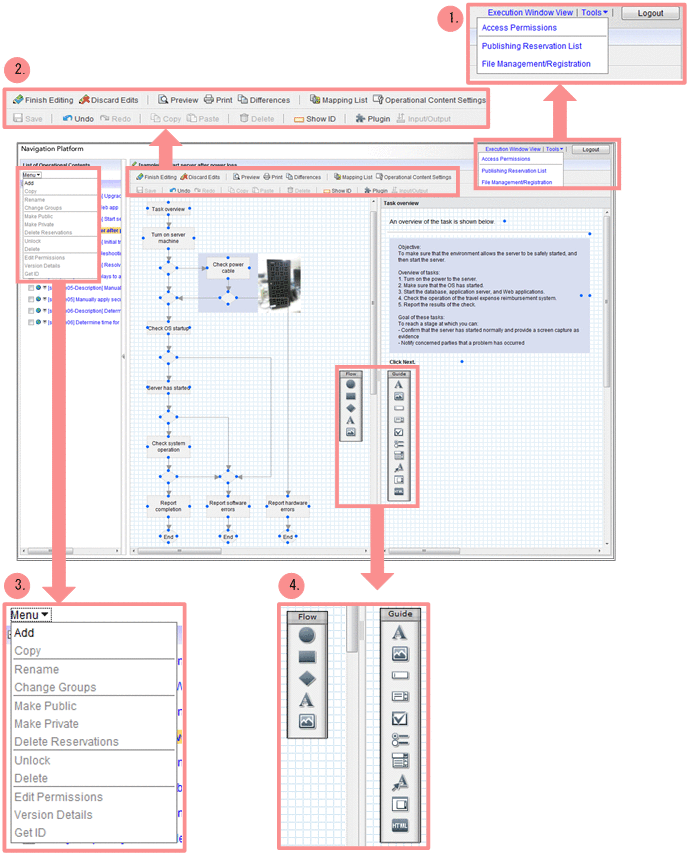

The following figure and table show what you can do in each part of the Operational Content Editing Window.
Number in figure |
What you can do |
Detailed description of procedure(s) |
---|---|---|
1. |
Switch to the Operational Content Execution Window |
|
Upload and delete image files and other resources |
2.8.6 Storing a static file by using the File Management/Registration window 2.8.7 Deleting a static file by using the File Management/Registration window |
|
Check publishing reservations |
6.4 How to check the Operational Content publishing reservation |
|
Log out |
||
2. |
Start or finish the editing process, or discard the changes you have made |
|
Perform editing tasks (such as saving, copying and pasting resources, and canceling operations) |
2.3.3 Saving Operational Content |
|
Specify the text size for Operational Content |
||
Set a link to be available throughout all stages of a piece of Operational Content |
||
Preview the Operational Content you are creating |
||
Print Operational Content |
||
Compare Operational Content with previous versions and show the differences |
||
Check nodes that use plugins |
5.11 Acquiring configuration information for Operational Content that uses plugins |
|
Switch the operation mode |
||
Show or hide node IDs and part IDs |
||
3. |
Add, copy, or delete Operational Content |
2.3.1 Creating (adding) new Operational Content |
Change group names |
||
Publish, unpublish, or reserve publication of Operational Content |
6.1.1 Publishing Operational Content |
|
Check publishing reservations |
6.4 How to check the Operational Content publishing reservation |
|
Delete publishing reservations |
6.4.2 Removing Operational Content from the publishing reservation |
|
Set and check access permissions |
2.4.1 Setting an access permission group or JP1 resource group for Operational Content |
|
Check comments for Operational Content and the publication dates of each version |
6.12 Checking the comment and publication time of Operational Content |
|
Check Operational Content IDs |
||
4. |
Use the Flow palette |
3.6.3 Placing character string Process Nodes |
Use the Guide palette |
4.4.3 Placing static-text parts (guide area) 4.5.3 Placing image parts (guide area) 4.7.3 Placing text areas (guide area) 4.8.3 Placing check boxes (guide area) 4.9.3 Placing radio button parts (guide area) 4.11.3 Placing hyperlink parts (guide area) |
- Organization of this section
