Place list RDAREAs on the back-end server that contains its base table.
Creating one list RDAREA lets you create lists for all the tables that are stored in that back-end server.
To avoid contention among disk accesses, you should place list RDAREAs on a separate disk from any other RDAREAs. The following figure shows an example of list RDAREA placement.

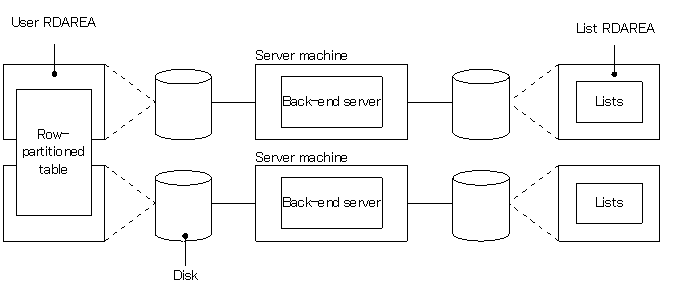

Figure 9-12 Example of list RDAREA placement (HiRDB/Parallel Server)
