The following figure shows an example of a system configuration for a HiRDB/Parallel Server. The system configuration of a HiRDB/Parallel Server is defined in the HiRDB system definition. For a definition example of the HiRDB system configuration shown in the following figure, see the manual HiRDB Version 9 System Definition.

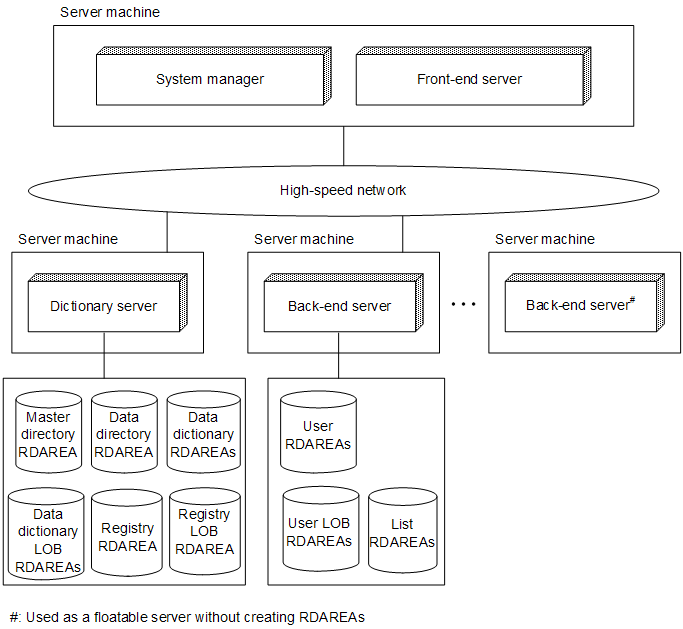

Figure 9-1 System configuration for a HiRDB/Parallel Server
