The following figure shows an example of a system configuration for HiRDB/Single Server.
The HiRDB/Single Server system configuration is defined in the HiRDB system definition. For details about definition examples of the system configurations, see the manual HiRDB Version 9 System Definition.

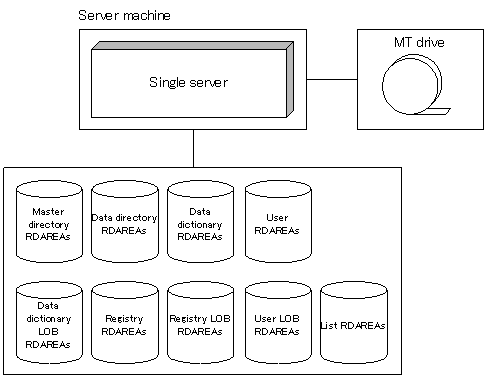

Figure 8-1 System configuration for a HiRDB/Single Server
![[Figure]](FIGURE/ZU080010.GIF)
