Preface

This manual is intended for users who will construct and/or operate a relational database system using HiRDB Version 9 (hereafter referred to as HiRDB).

The manual assumes that you have the following:

• A basic knowledge of managing Windows systems
• A basic knowledge of SQL

Please read the HiRDB Version 9 Description manual before reading this manual.

This manual is organized into the following chapters and appendixes:

1. Overview of HiRDB System Construction

Chapter 1 describes the HiRDB system construction procedure, organization of the HiRDB files, and upgrading procedure.

2. Installation

Chapter 2 describes tasks that are required before and after installation, and explains the procedures for installing and uninstalling HiRDB. It also provides notes concerning the installation of option program products.

This chapter also explains how to register and remove exceptions in the Windows Firewall Exceptions list.

3. Setting Up an Environment Using the Simple Setup Tool

Chapter 3 describes use of the simple setup tool for environment setup for a HiRDB system.

4. Setting Up an Environment Using Commands

Chapter 4 describes the procedure for setting up the HiRDB environment using commands.

5. Setting Up the Plug-in Environment

Chapter 5 describes the procedures for setting up the plug-in environment, along with the procedures for upgrading and deleting (uninstalling) it.

6. Creating Databases

Chapter 6 describes the procedures from schema, table, and index creation through data storage.

7. Linking to Other Products

Chapter 7 describes how to link HiRDB to other products.

8. Designing a HiRDB/Single Server

Chapter 8 describes the system configuration of a HiRDB/Single Server, the procedure for designing its HiRDB file system areas and system files, and provides notes about placement of RDAREAs.

9. Designing a HiRDB/Parallel Server

Chapter 9 describes the system configuration of a HiRDB/Parallel Server, the procedure for designing its HiRDB file system areas and system files, and provides notes about placement of RDAREAs.

10. Designing a Multi-HiRDB

Chapter 10 describes the design of a multi-HiRDB.

11. Designing Global Buffers and Local Buffers

Chapter 11 describes global-buffer and local-buffer design.

12. Designing Tables

Chapter 12 describes table design.

13. Designing Indexes

Chapter 13 describes the design of indexes and plug-in indexes.

14. Designing RDAREAs

Chapter 14 describes the design of the segments and pages that constitute an RDAREA.

15. Storage Requirements for HiRDB

Chapter 15 explains how to determine the storage requirements for a HiRDB/Single Server and a HiRDB/Parallel Server.

16. Determining RDAREA Size

Chapter 16 explains how to determine the size of each type of RDAREA.

17. Determining the Size of System Files and Audit Trail Files

Chapter 17 explains how to determine the size of system files, such as system log files, synchronization point dump files, and status files. This chapter also explains how to determine the size of audit trail files.

18. Determining Work Table File Size

Chapter 18 explains how to determine the size of a work-table file.

19. Storage Requirements for Utility Execution

Chapter 19 explains how to determine the file sizes and storage requirements for executing utilities.

20. Determining Environment Variables Related to the Number of Resources

Chapter 20 explains how to determine the environment variables related to the number of resources.

21. Windows Registry Settings

Chapter 21 explains how to determine the Windows registry settings.

22. Sample Files

Chapter 22 describes the sample files provided with HiRDB (sample database, configuration, and UOC).

23. Communication Between HiRDB Servers and HiRDB Clients

Chapter 23 explains how to connect HiRDB clients with HiRDB servers. It also describes the settings for a DNS server and a firewall.

A. HiRDB Maximum and Minimum Values

Appendix A lists the maximum and minimum values for HiRDB system configuration.

B. Processes Started by HiRDB

Appendix B lists and describes the processes that are started by HiRDB.

C. Questions and Answers

Appendix C provides examples of HiRDB system setup in a question and answer format.

D. Setting Up an Environment Using a Batch File

Appendix D describes the procedure for setting up the HiRDB server environment using a batch file, which automatically sets up a sample environment.

This manual is related to the following manuals, which should be read as required.

HiRDB (for Windows)

• HiRDB Version 9 Description (3020-6-451(E)), for Windows systems
• HiRDB Version 9 System Definition (3020-6-453(E)), for Windows systems
• HiRDB Version 9 System Operation Guide (3020-6-454(E)), for Windows systems
• HiRDB Version 9 Command Reference (3020-6-455(E)), for Windows systems
• HiRDB Version 8 Batch Job Accelerator (3020-6-368(E))^#

HiRDB (for UNIX)

• HiRDB Version 9 Description (3000-6-451(E)), for UNIX systems
• HiRDB Version 9 Installation and Design Guide (3000-6-452(E)), for UNIX systems
• HiRDB Version 9 System Definition (3000-6-453(E)), for UNIX systems
• HiRDB Version 9 System Operation Guide (3000-6-454(E)), for UNIX systems
• HiRDB Version 9 Command Reference (3000-6-455(E)), for UNIX systems
• HiRDB Version 9 Staticizer Option Description and User's Guide (3000-6-463), for UNIX systems^#
• HiRDB Version 9 Disaster Recovery System Configuration and Operation Guide (3000-6-464(E)), for UNIX systems
• HiRDB Version 9 Batch Job Accelerator (3020-6-468)^#
• HiRDB Version 9 Memory Database Installation and Operation Guide (3020-6-469), for UNIX systems^#

HiRDB (for both Windows and UNIX)

• HiRDB Version 9 UAP Development Guide (3020-6-456(E))
• HiRDB Version 9 SQL Reference (3020-6-457(E))
• HiRDB Version 9 Messages (3020-6-458(E))
• HiRDB Version 9 XDM/RD E2 Connection Facility (3020-6-465)^#
• HiRDB Version 9 XML Extension (3020-6-480)^#
• HiRDB Version 9 Text Search Plug-in (3020-6-481)^#
• HiRDB Version 8 Security Guide (3020-6-359)^#
• HiRDB Datareplicator Version 8 Description, User's Guide and Operator's Guide (3020-6-360(E))
• HiRDB Datareplicator Extension Version 8 (3020-6-361)^#
• HiRDB Dataextractor Version 8 Description, User's Guide and Operator's Guide (3020-6-362(E))

In references to HiRDB Version 9 manuals, this manual omits the phrases for UNIX systems and for Windows systems. Refer to either the UNIX or Windows HiRDB manual, whichever is appropriate for your platform.

For related products

• OpenTP1 Version 7 Programming Guide (3000-3-D51(E))
• OpenTP1 Version 7 System Definition (3000-3-D52(E))
• Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide (3020-3-R76(E))
• Job Management Partner 1/Integrated Management - Manager System Configuration and User's Guide (3020-3-K01(E))
• Job Management Partner 1/Base User's Guide (3020-3-K06(E))
• Job Management Partner 1/Integrated Manager - Console (3020-3-F01(E))
• Job Management Partner 1/Base (3020-3-F04(E))
• Job Management Partner 1/Automatic Job Management System 2 Description (3020-3-F06(E))
• JP1 V6 JP1/Base (3020-3-986(E))
• Code Conversion User's Guide (3020-7-350(E))^#

#: This manual has been published in Japanese only; it is not available in English.

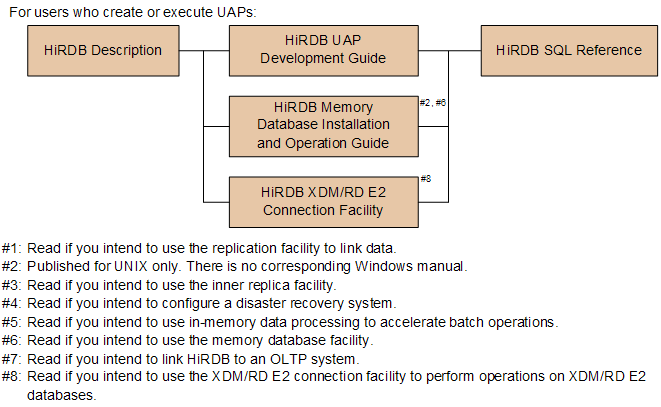

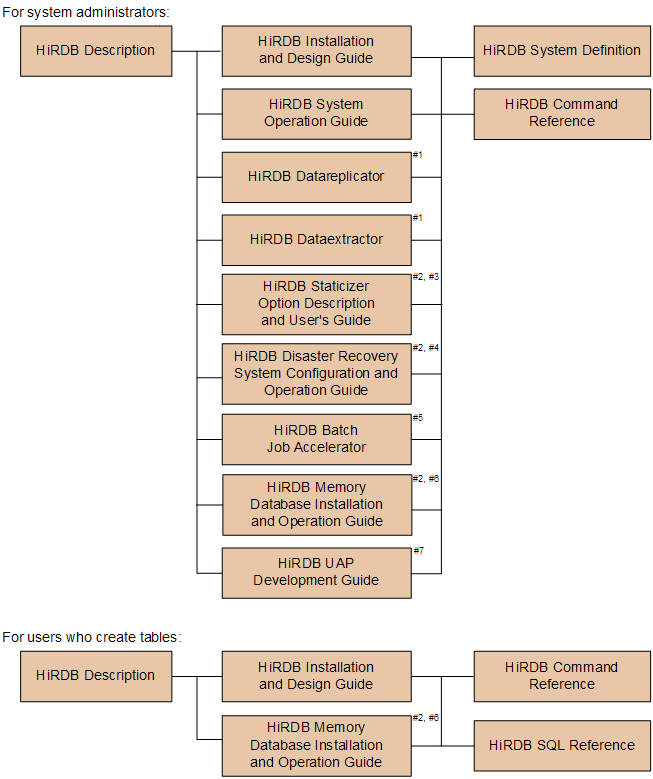

The HiRDB manuals are organized as shown below. For the most efficient use of these manuals, it is suggested that they be read in the order they are shown, going from left to right.
