(a) OSI protocol

Only the TCP/IP protocol is supported; the OSI protocol is not supported.

(b) Import operation without creating an output file

You cannot import data into a table without creating an output file.

• Data extraction and import between HiRDBs
  You must specify the -o or -O option in the xtrep command. If you omit both these options, the HiRDB Dataextractor on the target system outputs the JXU7222E message and terminates with return code 12. If you do not need these files, specify the -O option. If you specify the -o option, HiRDB Dataextractor retains the files at the server host; you can delete them manually once they are no longer needed.

• Data extraction and import with mainframe database
  To import from a mainframe database into a HiRDB using XDM/XT, you must specify XDM/XT's TRANSFER JXUMCTL control statement. If this control statement is omitted, HiRDB Dataextractor outputs the JXU7222E message and terminates with return code 12. If you do not need these files, specify PURGE YES in the TRANSFER statement. If you specify NO in the PURGE operand or you omit the PURGE operand from the TRANSFER statement, HiRDB Dataextractor retains these files at the server host; you can delete them manually once they are no longer needed.


• Conversion of data types
  If an HiRDB data attribute on the target system is VARCHAR and extracted data contains trailing spaces, these spaces will be eliminated when the data is imported.

• Network drive specification in XTTMPDIR environment variable
  Do not specify a network drive in the XTTMPDIR environment variable.

• Specification values of XTPDCFxxx, XTLPRMxxxx, and XTPDSRxxxx environment variables
  When you specify the file name with an absolute path name that contains spaces, enclose the path name in quotation marks (").

• When HiRDB is installed with a setup identifier
  Note the following items for the source and target systems.


  Source system:

  When you specify the xtrep or xtrepO command, execute it from the command prompt that corresponds to the HiRDB identifier.

  Target system:

  Specify the following environment variables in each [service-name] section of hirdbxt.ini. You can import data to the HiRDB corresponding to any identifier by specifying the port number corresponding to that service name in the source system.

  - PDDIR

  - PDCONFPATH

  - PDUXPLDIR

(a) Directories and files created by HiRDB Dataextractor

Table B-1 lists the directories and files that are created by HiRDB Dataextractor during installation.

Table B-1 Directories and files created by HiRDB Dataextractor

Directory name and filename	Description	Type
		Source	Target
installation-directory	Directory used to store various HiRDB Dataextractor directories and files	Y	Y
installation-directory\bin	Directory used to store HiRDB Dataextractor's executable files (HiRDB Dataextractor's load modules and commands are stored in this directory)	Y	Y
installation-directory \bin\pxtmsvc.exe	HiRDB Dataextractor's executable files	Y	Y
installation-directory \bin\pxtload.exe		Y	Y
installation-directory \bin\xtrep.exe	Files for HiRDB Dataextractor's xtrep command	Y	Y
installation-directory \bin\xtmsgtext.dll	Text files used to output HiRDB Dataextractor messages	Y	Y
installation-directory \conf\hirdbxtc.ini1	HiRDB Dataextractor's environment variable information setup file	Y 2	(Y)
installation-directory \conf\hirdbxt.ini1	HiRDB Dataextractor's environment variable information setup file	Y 3	Y
installation-directory \lib\maptable\euc2jis.map	Mapping table for character code conversion (from EUC to SJIS)	Y	Y
installation-directory \lib\maptable\eucg2j.map	Mapping table for character code conversion (from EUC to SJIS)	Y	Y
installation-directory \lib\maptable\euc2ucs2.map	Mapping table for character code conversion (from EUC to UCS2)	Y	Y
installation-directory \lib\maptable\eucg2u.map	Mapping table for character code conversion (from EUC to UCS2)	Y	Y
installation-directory \lib\maptable\jis2euc.map	Mapping table for character code conversion (from SJIS to EUC)	Y	Y
installation-directory \lib\maptable\jis2ucs2.map	Mapping table for character code conversion (from SJIS to UCS2)	Y	Y
installation-directory \lib\maptable\ucs22euc.map	Mapping table for character code conversion (from UCS2 to EUC)	Y	Y
installation-directory \lib\maptable\ucs22jis.map	Mapping table for character code conversion (from UCS2 to SJIS)	Y	Y
installation-directory\lib\usermap4	Directory containing the user's mapping tables for character code conversion	--	Y
installation-directory \spool\5	Directory used to store files output during HiRDB Dataextractor operation	Y	Y

Y: Created.

(Y): Created but not used.

Source: Source system

Target: Target system

installation-directory: Directory in which HiRDB is installed

¹ HiRDB Dataextractor creates the environment variable information setup files (hirdbxtc.ini and hirdbxt.ini) during installation. If you install a new version of HiRDB Dataextractor without uninstalling the previous version in the same directory, HiRDB Dataextractor creates environment variable information setup files with the names hirdbxtcXX.ini and hirdbxtXX.ini (where XX is 00 to 99). However, HiRDB Dataextractor uses hirdbxtc.ini and hirdbxt.ini.

² This file is used only when extracted data is to be imported into a HiRDB.

³ This file is used only when XDM/XT is used to extract data from HiRDB and then import it into XDM/RD or create a sequential dataset.

⁴ This file is created when a mapping table is updated for the first time by the xtccnvedt command.

⁵ installation-directory\spool\ contains files that are created dynamically by HiRDB Dataextractor. You must not delete any of these files during HiRDB Dataextractor operation. Also, never delete installation-directory\spool\. The files created in installation-directory\spool\ during HiRDB Dataextractor operation are the same as those created when the UNIX operating system is used.

(b) Environment variables required in order to use HiRDB Dataextractor

HiRDB Dataextractor's environment variables are specified in the files listed below, which are created by HiRDB Dataextractor during installation. These files already contain environment variables; modify them as appropriate to your user environment. These files can be specified at the same time as the HiRDB.ini file, which specifies client environment variables; the values specified for these files have priority.

• hirdbxtc.ini
• hirdbxt.ini

(i) Environment variables on data source system (for data extraction and import between HiRDBs)

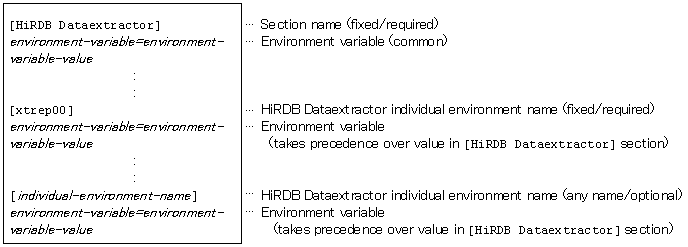

The following is the procedure for specifying the hirdbxtc.ini file:

Format

[individual-environment-name] ~ <alphanumeric characters with no spaces > ((1-64 characters))

Notes

• There is no restriction on the number of individual environment names that can be specified, but large files may use up memory and disable operation.
• Each section requires at least one environment variable.
• If the same section is specified more than once, the first section specified takes effect.
• You must specify the brackets ([]) because they indicate the section name.

(ii) Environment variables on data source system (for XDM/XT linkage)

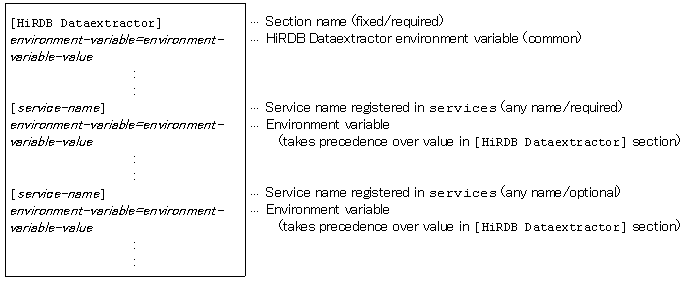

The following is the procedure for specifying the hirdbxt.ini file:

Format

[service-name] ~ <alphanumeric characters with no spaces > ((1-64 characters))

Notes

• You can specify a maximum of 16 service name sections.
• Each section requires at least one environment variable.
• An error results if a service name is duplicated or more service names are specified than the permitted maximum.
• You must specify the brackets ([]) because they indicate the section name.

(c) Environment variables to be specified

Table B-2 lists the environment variables that are required in order to use HiRDB Dataextractor. The environment variable names specified in the [HiRDB Dataextractor] section are used as the initial values for the environment variables specified in the other sections.

Some HiRDB versions allow HiRDB environment variables to be specified in HiRDB Dataextractor's environment variable information setup file.

Table B-2 Environment variables required in order to use HiRDB Dataextractor

Environment variable specification	Source system		Target system
	HiRDB	XDM/XT
File	hirdbxtc.ini	hirdbxt.ini	hirdbxt.ini
Environment variables specifiable for HiRDB Dataextractor1	[XTHOST] [XTPORTNO] [XTLOGNAME]	[XTTMPDIR] [XTLOGNAME] [XTOPNWTIME]	[XTTMPDIR] [XTLOGNAME] [XTOPNWTIME]
Environment variables specifiable for HiRDB1	[PDUSER]2 [PDDIR]2 [PDCONFPATH]2 [PDUXPLDIR]2 [other-environment-variable]	PDUSER2 [PDDIR]2 [PDCONFPATH]2 [PDUXPLDIR]2 [other-environment-variable]	PDUSER2 [PDDIR]2 [PDCONFPATH]2 [PDUXPLDIR]2 All other environment variables are ignored.

HiRDB: Import of extracted data into a HiRDB

XDM/XT: Use of XDM/XT to extract data from HiRDB and then import it into XDM/RD or create a sequential dataset

¹ Environment variables can be specified in each section.

² This environment variable must be set when the HiRDB for data extraction or import uses a setup identifier.

(d) Environment variable specification format

Format

environment-variable-name=[environment-variable-value]

Note

If you omit an environment variable's value, HiRDB Dataextractor assumes that the specified environment variable is not to be set.

Rules

• Specify each environment variable on a single line.
• A comment begins with the number sign (#) at the beginning of a line and ends at the end of the line (a comment cannot be specified on a line that contains an environment variable).

(e) Files required in order to use HiRDB Dataextractor

Table B-3 lists the files that are required in order to use HiRDB Dataextractor and which differ from the files required when the UNIX operating system is used.

Table B-3 Files required in order to use HiRDB Dataextractor that differ from the files required when the UNIX operating system is used

Filename	Description	Type
		Source system		Target system
		HiRDB	XDM/XT
installation-directory\conf\ hirdbxtc.ini	Contains the environment variables used for data extraction in order to extract and import data between HiRDBs.	Y	--	--
installation-directory\conf\ hirdbxt.ini	Contains the environment variables used to import data into HiRDB and to import extracted data into XDM/XT.	--	Y	Y
hosts file1	Contains the target host name at the target system.	Y	--	--
services file2	Contains the service name and port number for HiRDB Dataextractor.	--	Y	Y

Y: Required.

--: Not required.

installation-directory: Directory in which HiRDB Dataextractor is installed

HiRDB: Import of extracted data into HiRDB

XDM/XT: Use of XDM/XT to extract data from HiRDB and then import it into XDM/RD or create a sequential dataset

¹ Windows-system-directory\system32\drivers\etc\hosts

² Windows-system-directory\system32\drivers\etc\services

The following explains the procedures for operating and handling HiRDB Dataextractor that differ from when the UNIX operating system is used.

(a) Starting HiRDB Dataextractor

Start HiRDB Dataextractor at the following hosts:

• Host on the target system when data is to be extracted from a HiRDB and then imported into another HiRDB
• Host on the source system or the HiRDB host on the target system when XDM/XT is to be linked

The following explains the HiRDB Dataextractor startup procedures for automatic startup and manual startup.

After you set up the services file, Hitachi recommends that you set up HiRDB Dataextractor for automatic startup.

Automatic startup

This procedure starts HiRDB Dataextractor automatically when Windows is started. For automatic startup of HiRDB Dataextractor, you must use the Windows service.

1. On the Administrative Tools page, double-click the Service icon.
2. On the Service page, double-click the HiRDB Dataextractor service in the list box.
3. For Startup Type, select Automatic.

Manual startup

You use this procedure to start HiRDB Dataextractor manually. In this case, HiRDB Dataextractor is started from the Windows service.

1. On the Administrative Tools page, double-click the Service icon.
2. On the Service page, select HiRDB Dataextractor from the list box.
3. Choose the Start button to start HiRDB Dataextractor.

(b) Terminating HiRDB Dataextractor

The following explains the procedure for terminating HiRDB Dataextractor. The Windows service is used to terminate HiRDB Dataextractor.

Termination from the Windows service

1. On the Administrative Tools page, double-click the Service icon.
2. On the Service page, select HiRDB Dataextractor from the list box.
3. Choose the Stop button.

(a) xtrep command

The following explains the xtrep command specifications that are different from when the UNIX operating system is used.

xtrep
                 :
                 :
      {-o [output-filename]|-O[output-filename]}
      [-a individual-environment-section-name]
                 :
                 :

• -o [output-filename] ~ <pathname> ((1-70 characters))
• -O [output-filename] ~ <pathname> ((1-70 characters))
  You must specify either the -o or the -O option. The specification details for these options are the same as when the UNIX operating system is used. The name of the output file is determined by the value of the -o or -O option and the value of the XTTMPDIR environment variable on the data target system. Table B-4 shows the names of output files.


  Table B-4 Names of output file

  Specification		Name of output file
  Specification of output filename	Environment variable XTTMPDIR
  Y	Y	%XTTMPDIR%\specified-output-filename
  	N	installation-directory\spool\specified-output-filename
  N	Y	%XTTMPDIR%\extraction-table-name-year.month.date-hour.minute.second
  	N	installation-directory\spool\extraction-table-name-year.month.date-hour.minute.second

Y: Specified.

N: Not specified.

specified-output-filename: Output filename specified in the -o or -O option

%XTTMPDIR%: Value specified in the XTTMPDIR environment variable

Note

Any spaces or commas in a specified output filename or extraction table name are converted to the underscore character (_) in the created filename.

• -a individual-environment-section-name ~ ((1-64 characters))
  Specify the name of the individual environment section that was specified for the environment variables in the setup file (hirdbxtc.ini). The environment variables in the specified section take effect during execution of HiRDB Dataextractor. When this option is omitted, HiRDB Dataextractor assumes xtrep00 for the xtrep command and xtrepO00 for the xtrepO command.


(b) Notes on command specification

• To specify an authorization identifier or table identifier in lowercase letters, enclose it in a character string consisting of a back slash and a quotation mark ( \").


  Example

  \"aaa\"

• If an authorization identifier or table identifier contains a space, enclose it in a character string consisting of a back slash and a quotation mark ( \") and then enclose it in quotation marks (").


  Example

  "\"a a\""

• To specify a path name that contains spaces, enclose the path name in quotation marks (").
• If you have specified only a back slash (\) in the XTTMPDIR environment variable, be sure to specify a complete pathname in the -o, -O, or -b option.

Table B-5 shows the message output destinations.

Table B-5 Message output destinations

Output destination	Source system		Target system
	HiRDB	XDM/XT
Error log file (installation-directory\spool\xter)	Y1	Y2	Y2
Standard output	Y	--	--
Event log	Y	Y	Y

Y: Output.

--: Not output.

HiRDB: Import of extracted data to HiRDB

XDM/XT: Use of XDM/XT to extract data from HiRDB and then import it into XDM/RD or create a sequential dataset

¹ If the XTLOGNAME environment variable is omitted, HiRDB Dataextractor assigns a unique filename. You can output messages to a desired file by specifying the -e option in the xtrep command. In such a case, the specified filename takes precedence over the value set in the XTLOGNAME environment variable. If an error occurs during parameter analysis, this file is not created, and HiRDB Dataextractor outputs error messages to the standard output only.

² If the XTLOGNAME environment variable is omitted, HiRDB Dataextractor assigns a unique filename.
