This section explains the format of the listing that is output when HiRDB Dataextractor is executed on the data source system.

The execution results of HiRDB Dataextractor on the data source system are output to the error log file. For details about the name of the error log file, see Table 2-3 Directories and files created by HiRDB Dataextractor. Figure 4-2 shows the structure of the listing that is output during execution of HiRDB Dataextractor on the data source system. Figure 4-3 shows an example of a HiRDB Dataextractor execution results listing on the data source system.

Figure 4-2 Structure of output listing during data extraction

Figure 4-3 HiRDB Dataextractor execution results listing on the data source system

Explanation

The numbers below correspond to the circled numbers in the figure.

1. Name of program product
2. Load module name
3. Version number
4. Revision number
5. Date on which PXTCNTL (HiRDB Dataextractor's entry program) was executed (in the format yy-mm-dd)
6. PXTCNTL execution time (in the format hh:mm:ss)
7. ID of the process that issued the message
8. Message output time
9. HiRDB Dataextractor message

This section explains the format of the listing that is output when HiRDB Dataextractor is executed on the data target system.

Figure 4-4 shows the structure of the listing that is output during execution of HiRDB Dataextractor on the data target system. Figure 4-5 shows an example of a HiRDB Dataextractor execution results listing on the data target system.

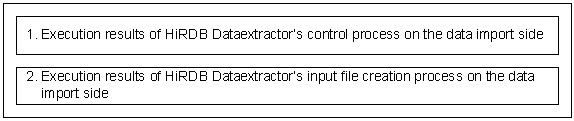

Figure 4-4 Structure of output listing during data import

1, 2: These represent the execution results of HiRDB Dataextractor's control process and input file creation process on the data target system. These results are output to separate error log files. For details about the names of the error log files, see Table 2-3 Directories and files created by HiRDB Dataextractor.

An output listing contains the ID of HiRDB Dataextractor's data extraction process on the data source system. You can use this process ID to search for the corresponding HiRDB Dataextractor output listing on the target system.

The 1. execution results contain execution results messages from pdload; for details, see the HiRDB Messages manual.

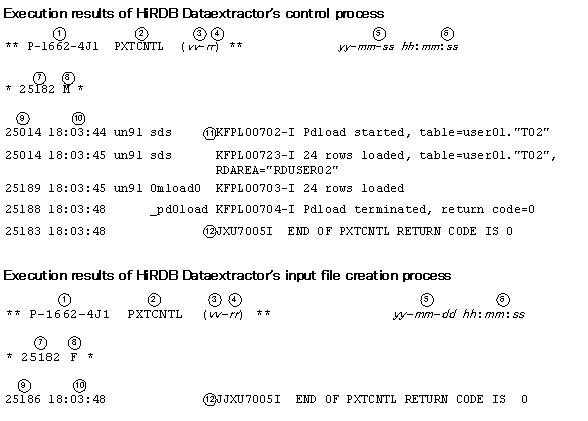

Figure 4-5 HiRDB Dataextractor execution results listing on the data target system

Explanation

The numbers below correspond to the circled numbers in the figure.

1. Name of program product
2. Load module name
3. Version number
4. Revision number
5. PXTCNTL execution date (in the format yy-mm-dd)
6. PXTCNTL execution time (in the format hh:mm:ss)
7. ID of HiRDB Dataextractor's data extraction process on the data source system
   This information is not output if an error occurs during connection establishment.

8. HiRDB Dataextractor's process type:
   M: Control process
   F: Input file creation process

9. ID of the process that issued the message
10. Message output time
11. pdload message
12. HiRDB Dataextractor message
