This section describes the software configuration required in order to use HiRDB Dataextractor. Table 2-1 lists the program products related to execution of HiRDB Dataextractor.

Table 2-1 Related program products

Program product	Required	Remarks
HP-UX Windows Solaris Linux AIX	Y	N/A
HiRDB	C	One of the HiRDB systems is required in order to extract data from HiRDB or to import data into HiRDB.
HiRDB Text Search Plug-in	C	Required in order to use columns of the HiRDB abstract data type (SGMLTEXT type).
XNF/H/BASE	C	Required when the operating system being used is HP-UX and the OSI protocol is used.
XNF/H/ACONARC	C
XDM/RD	C	One of the XDM/RD systems is required in the following cases: To extract data from XDM/RD or to import data into XDM/RD To create a file from XDM/RD
XDM/XT	C	Required in the following cases: To extract data from XDM/RD and then either import it into HiRDB or create a file To extract data from a sequential dataset and then either import it into HiRDB or create a file To extract data from HiRDB and then either import it into XDM/RD or create a sequential dataset
ORACLE	C	Required in order to extract data from ORACLE.

Y: One of the program products listed below is required.

C: Program product is required depending on the conditions.

The software configuration of HiRDB Dataextractor depends on the protocol that is used. Figures 2-1 and 2-2 show the software configurations of HiRDB Dataextractor.

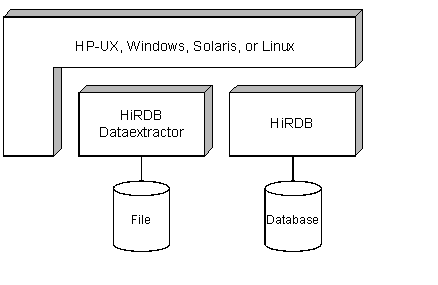

Figure 2-1 Software configuration (TCP/IP connection)

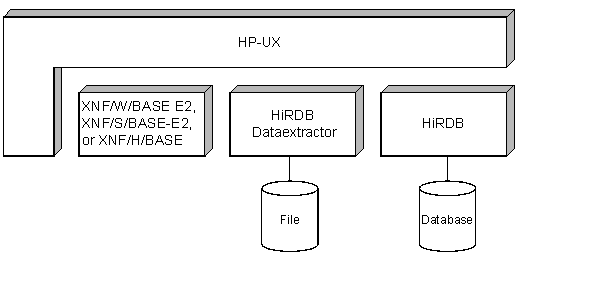

Figure 2-2 Software configuration (OSI connection)
