To create a shared library for the column data editing UOC routine interface:

1. Select a target column that is to use the column data editing UOC routine interface.
2. Create the function for the column data editing UOC routine interface.

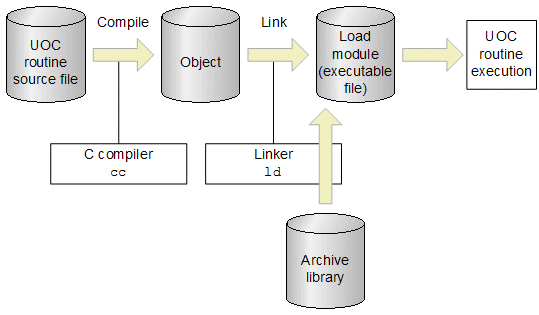

3. Compile and link the function for the column data editing UOC routine interface.

The compiling and linking procedures are explained for each OS.

If an unresolved link error occurs, specify all libraries required during linking.

(a) HP-UX Datareplicator

UOC routine compilation

cc -c +z -I/opt/hirdbds/include
     UOC-routine-source-filename[UOC-routine-source-filename]...

Compilation of a UOC routine in an environment for the IPF version

   cc -c +DD64 +z -Y -I/opt/hirdbds/include UOC-source-file-name[UOC-source-file-name]...

-c: Object creation option.

+z: Position-independent code creation option.

-I: Directory that stores the header files provided by Datareplicator (always /opt/hirdbds/include). You can specify multiple directories if the UOC routine requires other header files.

UOC routine linkage

ld -b -o libhdscuoc.sl UOC-routine-object-filename[UOC-routine-object-filename]...

Linkage of a UOC routine in an environment for the IPF version

   ld -b -o libhdscuoc.so  UOC-object-file-name[UOC-object-file-name]...

(b) Solaris Datareplicator

UOC routine compilation

/opt/SUNWspro/bin/cc -c -KPIC -I/opt/hirdbds/include
     UOC-routine-source-filename[UOC-routine-source-filename]...

-c: Object creation option.

-KPIC: Position-independent code creation option.

-I: Directory that stores the header files provided by Datareplicator (always /opt/hirdbds/include). You can specify multiple directories if the UOC routine requires other header files.

UOC routine linkage

/opt/SUNWspro/bin/cc -G -o libhdscuoc.so
UOC-routine-object-filename[UOC-routine-object-filename]...

(c) AIX Datareplicator

UOC routine compilation

xlc -c -I /opt/hirdbds/include
UOC-routine-source-file-name[UOC-routine-source-file-name]...

-c: Object creation option

-I: Directory that stores the header files provided by Datareplicator (always /opt/hirdbds/include). You can specify multiple directories if the UOC routine requires other header files.

UOC routine linkage

xlc -bM:SRE -bnoentry
    -bE:/opt/hirdbds/lib/libhdscuoc.exp -o libhdscuoc.a
      UOC-routine-object-file-name[UOC-routine-object-file-name]...

(d) Linux Datareplicator

Compilation of a UOC routine in an environment for the 32-bit or IPF version

gcc -c -fPIC -I/opt/hirdbds/include
     UOC-routine-source-filename[UOC-routine-source-filename]...

Compilation of a UOC routine in an environment for the EM64T version

   gcc -c -m32 -fPIC -I/opt/hirdbds/include UOC-source-file-name[UOC-source-file-name]...

-c: Object creation option.

-fPIC: Position-independent code creation option.

-I: Directory that stores the header files provided by Datareplicator (always /opt/hirdbds/include). You can specify multiple directories if the UOC routine requires other header files.

Linkage of a UOC routine in an environment for the 32-bit edition

ld -G -o libhdscuoc.so UOC-routine-object-filename[UOC-routine-object-filename]...

Linkage of a UOC routine in an environment for the IPF version

   gcc -shared -o libhdscuoc.so  UOC-object-file-name[UOC-object-file-name]...

Linkage of a UOC routine in an environment for the EM64T version

   gcc -m32 -shared -o libhdscuoc.so  UOC-object-file-name[UOC-object-file-name]...

You can store a created send data UOC routine library in any directory. However, do not replace libhdscuoc.sl (libhdscuoc.so for the Solaris, Linux, or HP-UX (IPF) Datareplicator and libhdscuoc.a for AIX Datareplicator) under /opt/hirdbds/lib.
