This subsection explains the abstract data type mnemonics and the structure of column data.

(a) Abstract data type mnemonics

Table 8-16 Column data type mnemonics (UCOLUMN_BLK.coltype) and Table 8-17 Data address mnemonics (UCOLUMN_BLK.dataptr) show the abstract data type mnemonics. For details about the non-abstract data type mnemonics, see Table 8-10 Column data type mnemonics and Table 8-11 Data address mnemonics.

Table 8-16 Column data type mnemonics (UCOLUMN_BLK.coltype) (UCOLUMN_BLK.coltype)

Column data type	Mnemonic	Data code
ADT (abstract data type)	HDS_T_ADT	(0x83)

Table 8-17 Data address mnemonics (UCOLUMN_BLK.dataptr)

Data type	Mnemonic	Address type
ADT (abstract data type)	HDS_A_ADT	UTYPE_BLK *

(b) Structure of abstract data-type column data

The figure below shows the structure of abstract data-type column data. For details about the structure of non-abstract data-type column data, see Figure 8-4 UDATA_BLK and related structures.

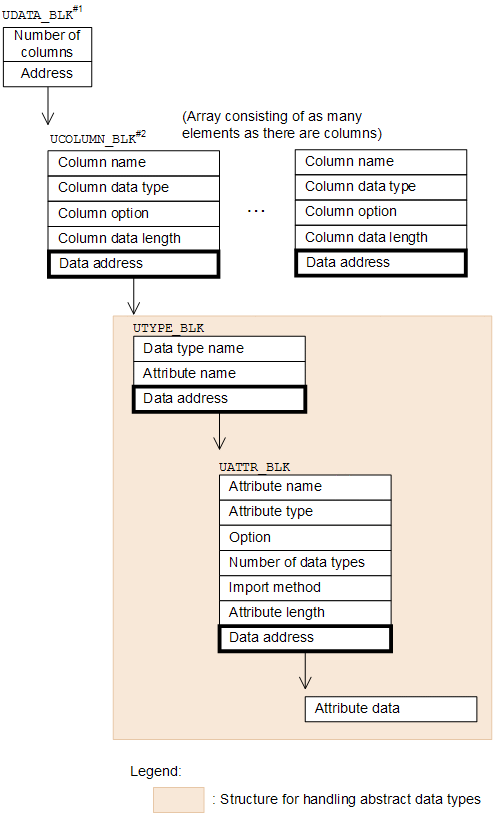

Figure 8-5 Structure of abstract data-type column data

#1

For the contents of UDATA_BLK, see Table 8-7 Contents of UDATA_BLK.

#2

For the contents of UCOLUMN_BLK, see Table 8-8 Contents of UCOLUMN_BLK.

The following table shows the contents of UTYPE_BLK (abstract data type information).

Table 8-18 Contents of UTYPE_BLK (abstract data type information)

Member name	Length (bytes)	Attribute	Area name	Defined by	Description
schema_name	31	char	Authorization identifier	Caller	Authorization identifier for the abstract data type (including the termination symbol)
type_name	31	char	Abstract data type name	Caller	Type name of the abstract data type (including the termination symbol)
reserve1	2	char	Reserved area 1	Caller	Reserved
def_attrnum	4	int	Number of defined attributes	Caller	Number of attributes defined for the abstract data type
set_attrnum	4	int	Number of attribute data items	Caller	Number of attribute data items stored in the data type
data_addr	4	UATTR_BLK *	UATTR_BLK * address	Caller	Address of the attribute management table (UATTR_BLK)
reserve2	8	char	Reserved area 2	Caller	Reserved

The following table shows the contents of UATTR_BLK (attribute data information).

Table 8-19 Contents of UATTR_BLK (attribute data information)

Member name	Length (bytes)	Attribute	Area name	Defined by	Description
attr_name	31	char	Attribute name	Caller	Attribute name (including the termination symbol)
attr_type	1	unsignedchar	Data type of the attribute	Caller	Data type of the attribute For details about the data type mnemonics, see Table 8-10 Column data type mnemonics.
null_flag	1	unsignedchar	NULL flag for the attribute	Caller	NULL flag for the attribute 0x01: NULL value 0x00: Non-NULL value
adtfunc	1	unsignedchar	Import method for the abstract data type	Caller	Import method for the abstract data type 0x01: Constructor function import method 0x00: The data type of the attribute is not the abstract data type (0x83)
reserve1	3	char	Reserved area 1	Caller	Reserved
attr_len	4	int	Attribute data length	Caller	Attribute data length The value is 0 in the following cases: The data type of the attribute is the abstract data type The NULL flag of the attribute is the NULL value
adtelnum	4	int	Abstract data type inheritance count	Caller	Number of data types with an inheritance relationship when the data type of the attribute is the abstract data type 1: No inheritance 0: The data type of the attribute is not the abstract data type (0x83)
data_addr	4	UNION *	Attribute data address	Caller	Attribute data address (input data for constructor function of the abstract data type that is entered at the source) UTYPE_BLK address: The data type of the attribute is the abstract data type NULL: The NULL flag of the attribute is the NULL value For details about the data address mnemonics, see Table 8-11 Data address mnemonics.
reserve2	8	char	Reserved area 2	Caller	Reserved

(c) Settings for UTYPE_BLK and UATTR_BLK of each abstract data type

Table 8-20 Settings for UTYPE_BLK for each abstract data type shows the settings for UTYPE_BLK for each abstract data type, and Table 8-21 Settings for UATTR_BLK for each abstract data type shows the settings for UATTR_BLK for each abstract data type.

Table 8-20 Settings for UTYPE_BLK for each abstract data type

Member name	Abstract data type
	SGMLTEXT	FREEWORD	XML
schema_name	MASTER	MASTER	MASTER
type_name	SGMLTEXT	FREEWORD	XML
reserve1	Reserved	Reserved	Reserved
def_attrnum	0	0	0
set_attrnum	1	1	1
data_addr	UATTR_BLK address	UATTR_BLK address	UATTR_BLK address
reserve2	Reserved	Reserved	Reserved

Table 8-21 Settings for UATTR_BLK for each abstract data type

Member name	Abstract data type
	SGMLTEXT	FREEWORD	XML
attr_name	Not specified.	Not specified.	Not specified.
attr_type	HDS_T_BLOB(0x93)#	HDS_T_VCHAR(0xC1)#	HDS_T_BINARY(0x91)#
null_flag	0x00	0x00	0x00
adtfunc	0x00	0x00	0x00
reserve1	Reserved	Reserved	Reserved
attr_len	Actual attribute data length (maximum 2,147,483,647)	Actual attribute data length (maximum 32,000)	Actual attribute data length (maximum 2,147,483,647)
adtelnum	0	0	0
data_addr	Attribute data address	Attribute data address	Attribute data address
reserve2	Reserved	Reserved	Reserved

#

To reference attribute data of the abstract data type that has been passed to an import information editing UOC routine, use a cast in C language in the same manner as for the normal column data types. If you will be casting the data structure indicated by the attribute data address to the attribute data type, see Table 8-15 Relationships among the UOC routine's column data type, data length, and representation in C language.

For abstract data types, no value is set in the collen member (column data length) of UCOLUMN_BLK that is passed to an import information editing UOC routine. For this reason, when abstract data types are handled, you must not reference the collen member of UCOLUMN_BLK.

Configuration of the source and target tables

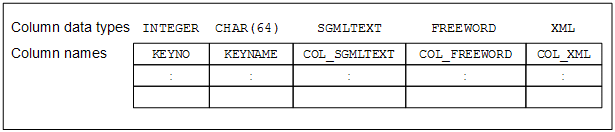

The figure below shows the structure of the sample table that is subject to extraction processing. The sample target table has the same structure.

Example code

The following figure shows an example of coding that executes INSERT on the table that contains columns of the SGMLTEXT, FREEWORD, and XML types.

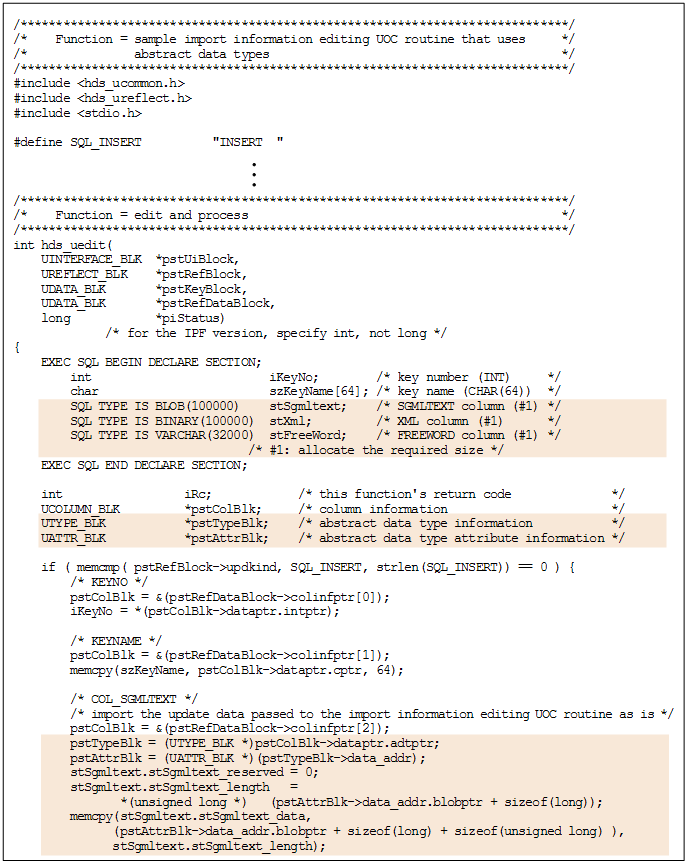

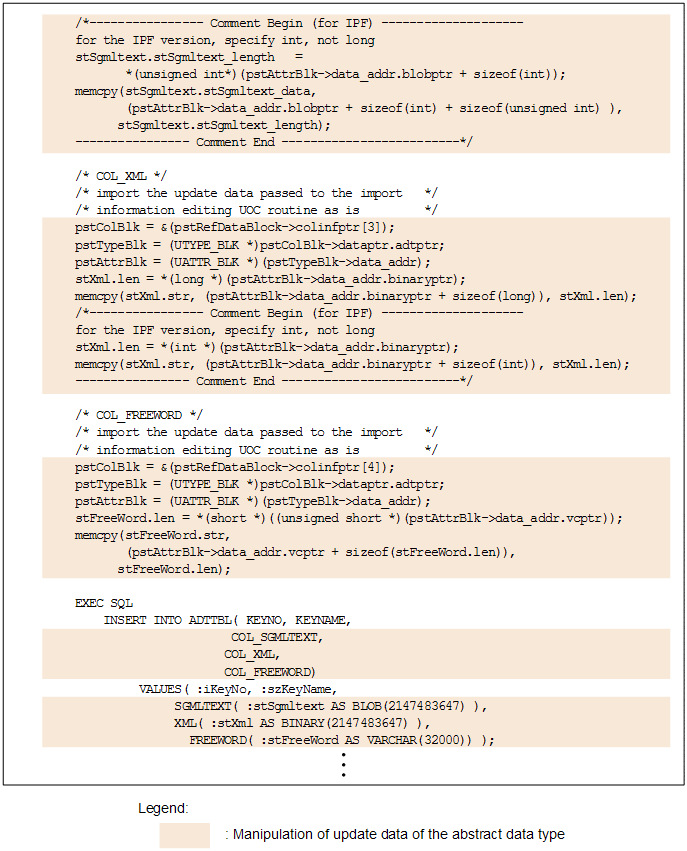

Figure 8-6 Example of coding that executes INSERT on the table that contains columns of the abstract data types.
