Function

The hdefstate command displays the status of duplexed files (physical files) in the target system.

Format

hdsfstate [-f logical-file-name]

Options

-f logical-file-name

Specify the absolute path name of the logical file whose status is to be displayed.

If this operand is omitted, the command displays the status of all duplex files at the server machine where this command is executed.

Output format

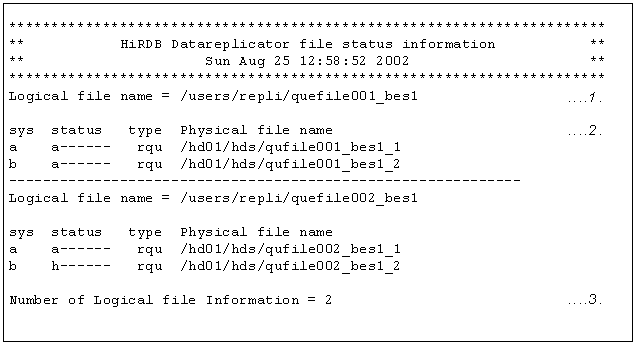

The hdsfstate command displays the status of the extraction information queue files in the following format:

1. Indicates the logical file name.
2. Indicates status information for the physical file.
   sys: Physical file system
   For the primary system, a is displayed; for the secondary system, b is displayed:


   Output	Description
   a	Primary file
   b	Secondary file

   status: Physical file status. The character in column 1 represents the status:


   Output	Description
   a	Current file status (ACTIVE)
   h	Error status (HOLD)
   *	Status cannot be obtained.

   type: Type code for the physical file:


   Output	Description
   rmt	Import master status file
   rst	Import status file
   rqu	Import information queue file
   ---	Other file
   ***	File type cannot be obtained

   Physical file name: Name of the physical file

3. Indicates the number of logical file information items that have been displayed.
