Function

The hdsagtstatus command displays the status of the Datareplicator agent on the machine subject to monitoring. General users can execute the hdsagtstatus command.

Format

hdsagtstatus

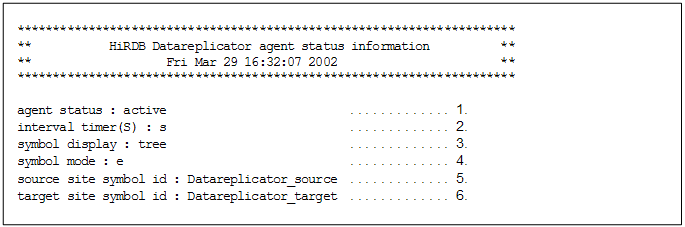

Output format

Legend:

1. agent status
   Displays the status of the Datareplicator agent:
   starting: Starting
   active: Active (parentheses enclose the process ID)
   stopping: Stopping
   stop: Stopped
   retry: Retrying due to an error
   error stop: Detailed information (if there is no detailed information, see the system log or event log)
   Cm2 systemtrap error (NETM*Cm2 system error)
   Insufficient memory (insufficient memory)
   File I/O error (file I/O error)

2. interval timer
   Displays the monitoring interval (seconds).

3. symbol display
   Displays the symbol display method:
   tree: Hierarchical display
   notree: Non-hierarchical display

4. symbol mode
   Displays the symbol mode.

5. source site symbol id
   Displays the symbol name of the source Datareplicator (the symbol name set by the user when the symbol mode is u).

6. target site symbol id
   Displays the target Datareplicator's symbol name (set by the user when the symbol mode is u).
