This section explains by way of examples the following source and target definitions:
These examples use the source table's form number (FNO) column as the mapping key.

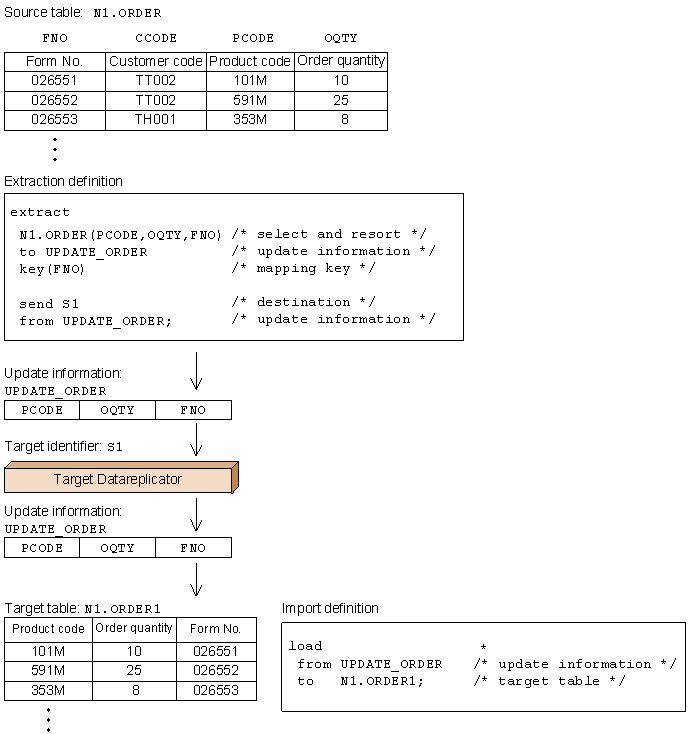

The following figure shows an example of source and target definitions when data linkage is used for selecting and resorting the source table's columns at the source.
Figure 5-22 Example of source and target definitions: Selecting and resorting columns at the source
![[Figure]](FIGURE/RZ05S190.GIF)

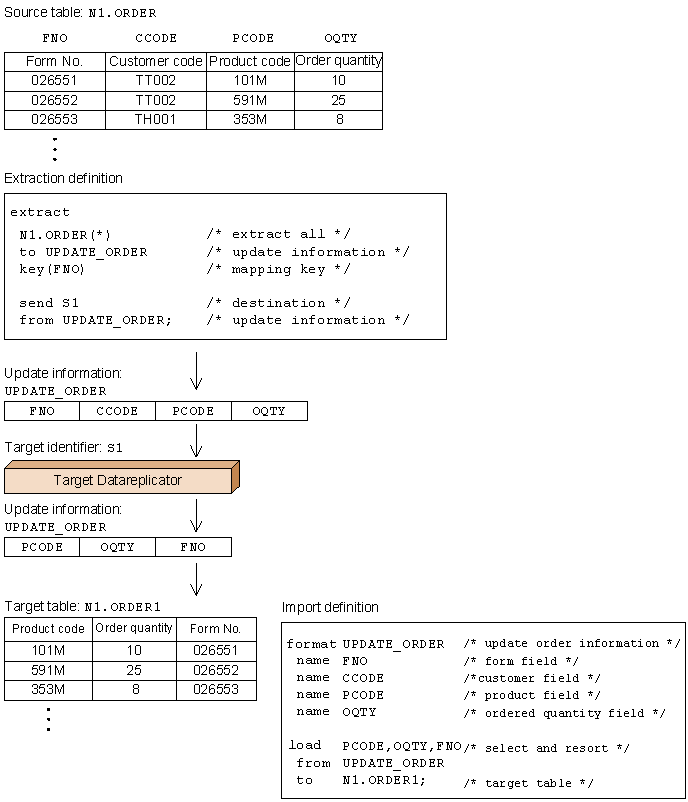

The following figure shows an example of source and target definitions when data linkage is used for selecting and resorting the source table's columns at the target.
Figure 5-23 Example of source and target definitions: Selecting and resorting columns at the target
![[Figure]](FIGURE/RZ05S200.GIF)

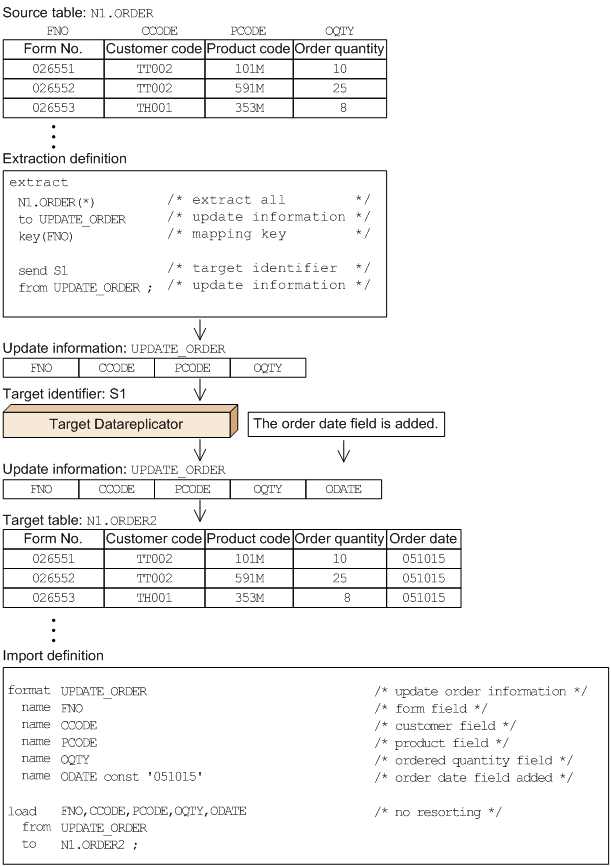

The following figure shows an example of source and target definitions when data linkage is used for adding a column (fixed value) to the source table at the target.
Figure 5-24 Example of source and target definitions: Adding a column (fixed value) at the target
![[Figure]](FIGURE/RZ05S210.GIF)

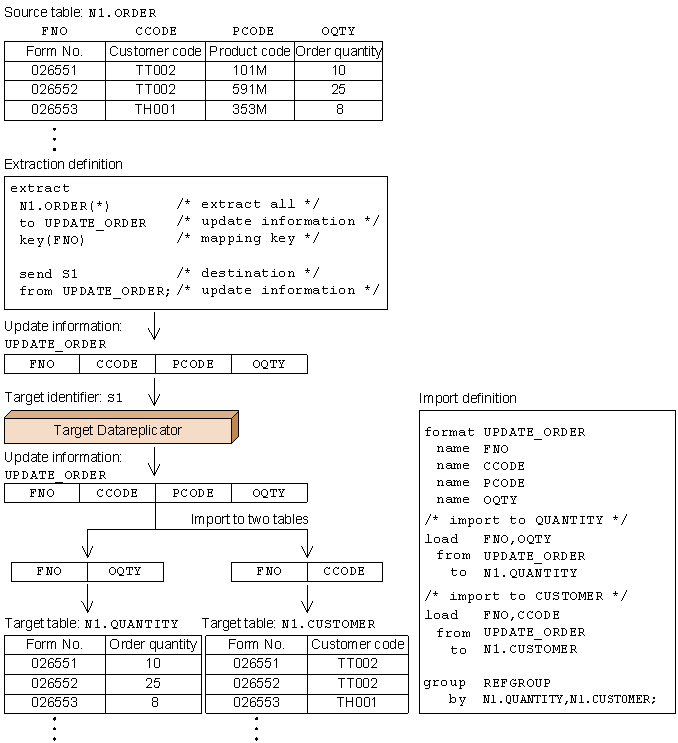

The following figure shows an example of source and target definitions when data linkage is used for dividing one source table into two tables at the target.
Figure 5-25 Example of source and target definitions: Dividing one table into two tables at the target
![[Figure]](FIGURE/RZ05S220.GIF)

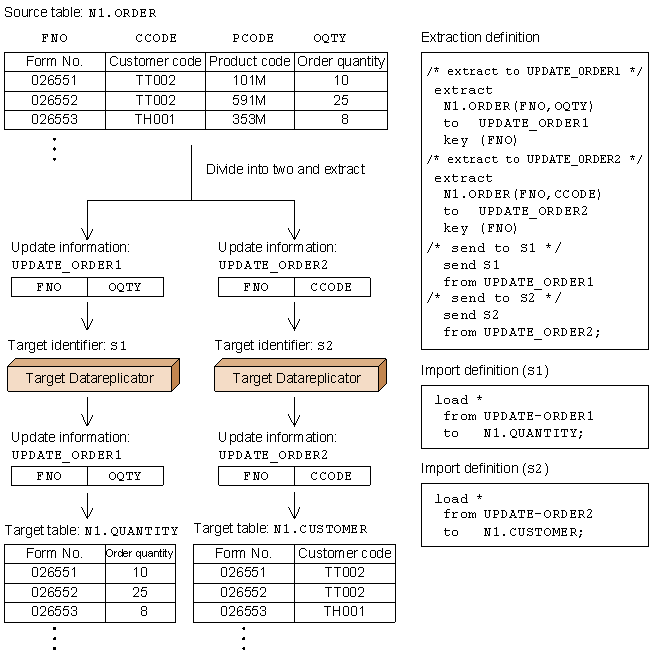

The following figure shows an example of source and target definitions when data linkage is used for dividing one source table into two tables at the source.
Figure 5-26 Example of source and target definitions: Dividing one table into two tables at the source
![[Figure]](FIGURE/RZ05S230.GIF)

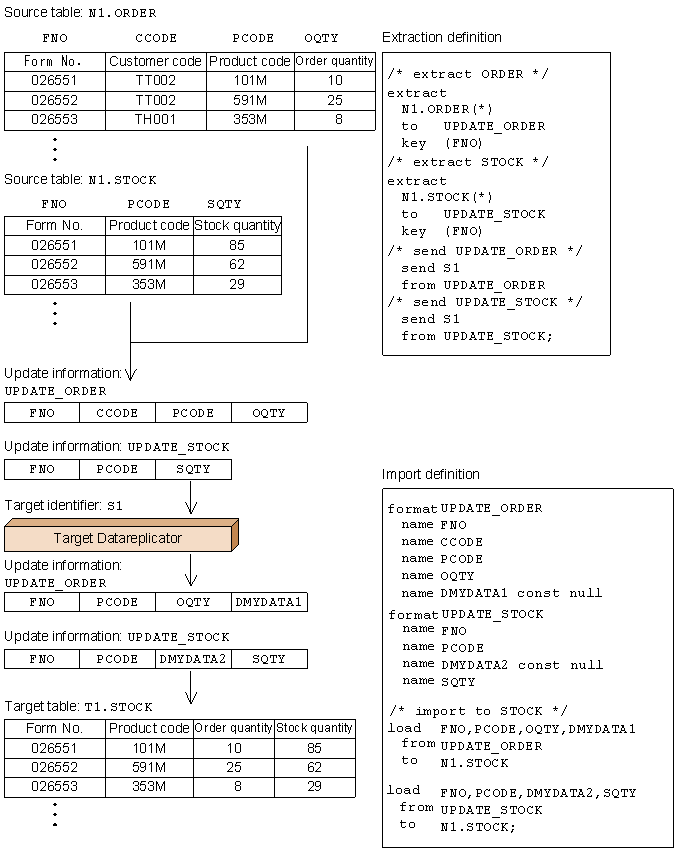

The following figure shows an example of source and target definitions when data linkage is used for combining two source tables into one table at the target.
Figure 5-27 Example of source and target definitions: Combining two tables into one table at the target
![[Figure]](FIGURE/RZ05S240.GIF)
