Figures 4-29 and 4-30 show the source Datareplicator's file organizations.
For details about the source Datareplicator's directory structure in UNIX, see 2.3.2 Directory structure of a source Datareplicator; for details about the source Datareplicator's directory structure in Windows, see 2.7.2 Directory structure of a source Datareplicator.

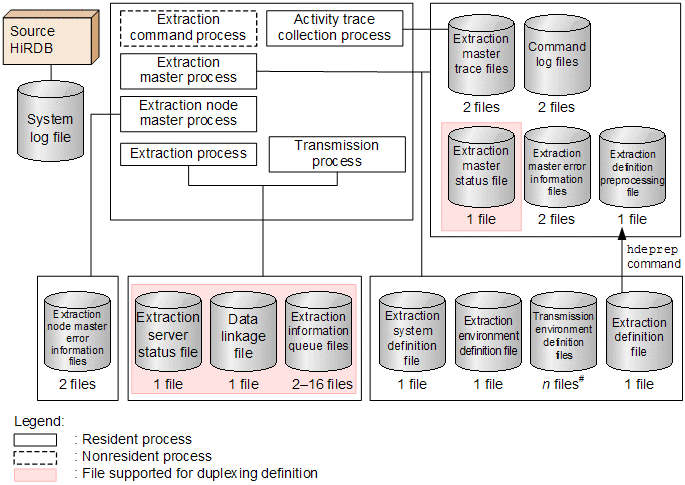

Figure 4-29 Source Datareplicator's file organization: Source HiRDB is a single server
![[Figure]](FIGURE/RZ04S280.GIF)

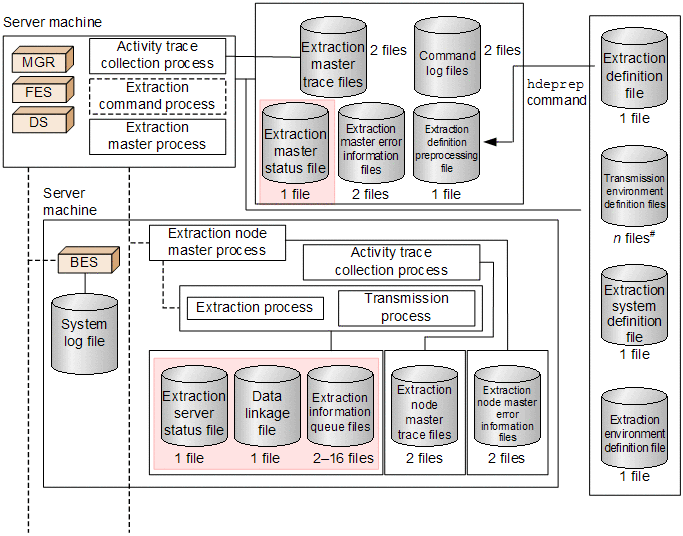

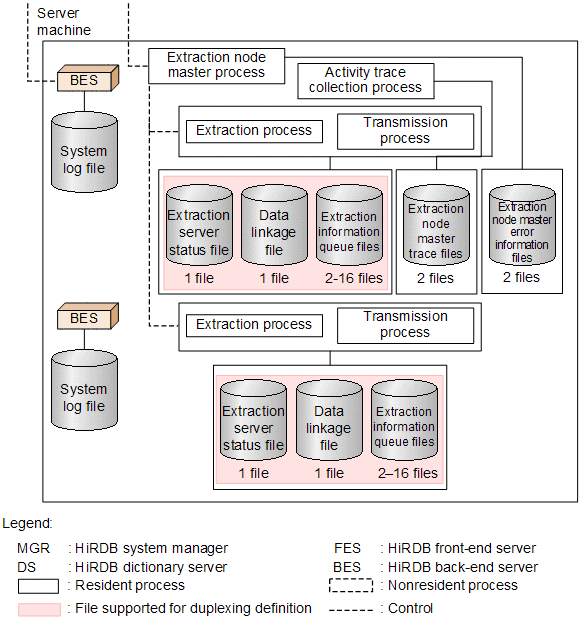

Figure 4-30 Source Datareplicator's file organization: Source HiRDB is a parallel server
![[Figure]](FIGURE/RZ04S290.GIF)
![[Figure]](FIGURE/RZ04S291.GIF)
