This subsection describes examples of operations using the import transaction synchronization facility.

The following table describes the procedure for each operation:

Operation	Procedure
Initialization procedure at the environment configuration stage	Follow the procedure described in 6.2 Initialization procedure at the environment configuration stage.
Normal job	Follow the procedure described in Starting through terminating a normal job.
Changing the configuration of table to be extracted Changing the server configuration for the source HiRDB	Follow the procedure described in Starting through terminating a normal job, and then change the extraction and import definitions. Then follow the procedure described in 6.8.4 Changing the configuration when the import transaction synchronization facility is used.
Partial initialization of the source Datareplicator	Partial initialization is not supported for a destination that uses the import transaction synchronization facility. Follow the procedure described in 6.8.4 Changing the configuration when the import transaction synchronization facility is used.

Starting through terminating a normal job

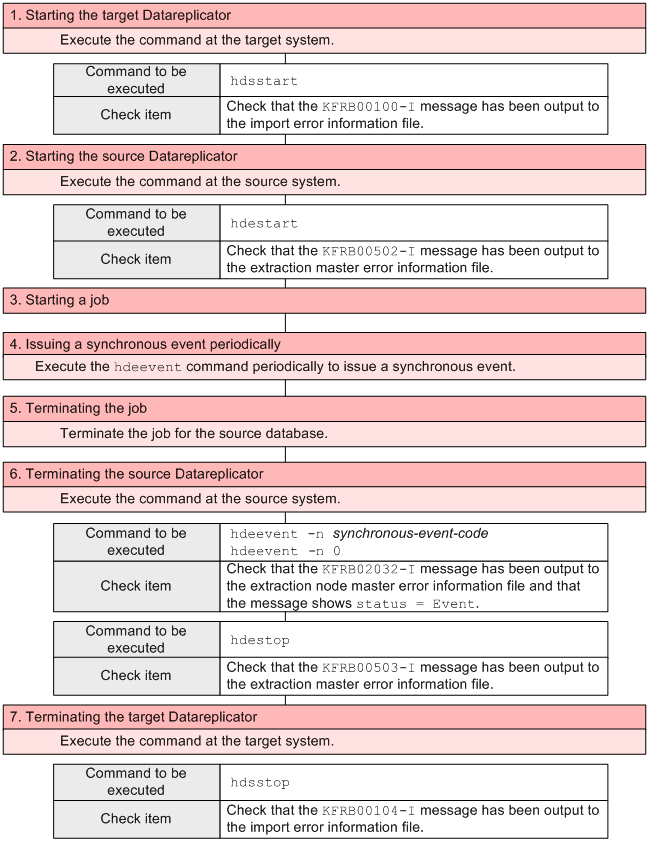

The following figure shows the procedure for starting through terminating a normal job.
